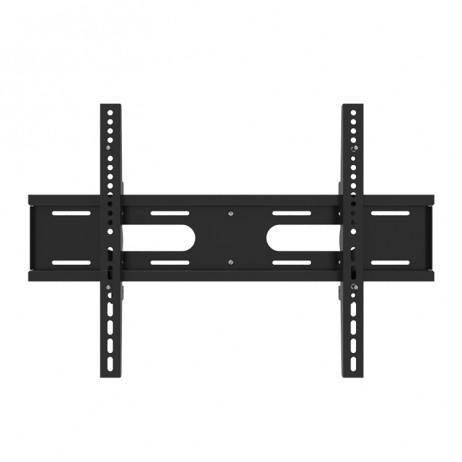

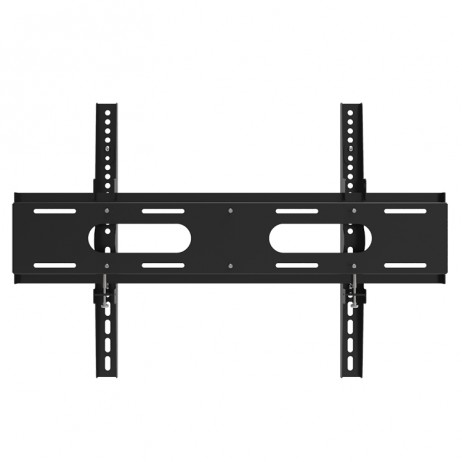

Wall mounting bracket mw1010

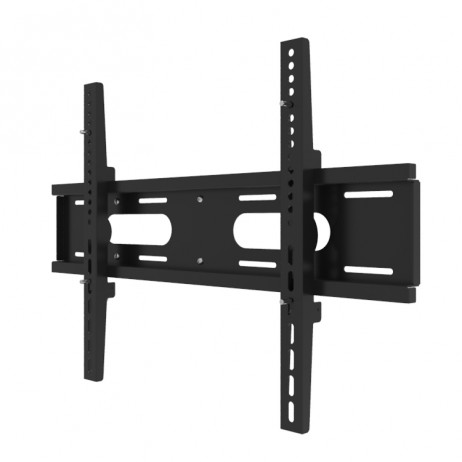

Wall mounting bracket mw1010-all sheet metal
Wall mounting bracket mw1010-displays from 43 to 55 inch screen

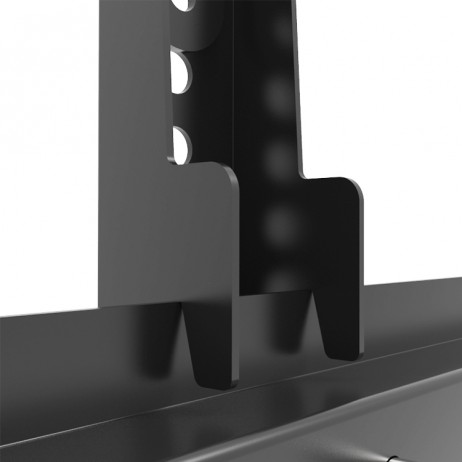

Wall mounting bracket mw1010-vertical mounting rack with clasp

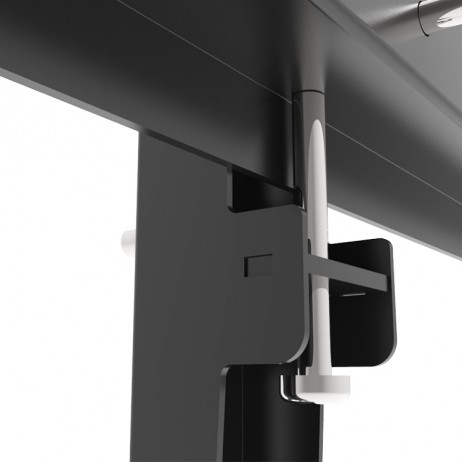

Wall mounting bracket mw1010-clasp located with long screw

MW-1010

Wall Mounting Bracket

Features

 •  All sheet metal structure

 •  Compatible with displays 43-55 inch

Overview Application Specs Resources

Wall mounting bracket mw1010

Application

Specs

MW-1010

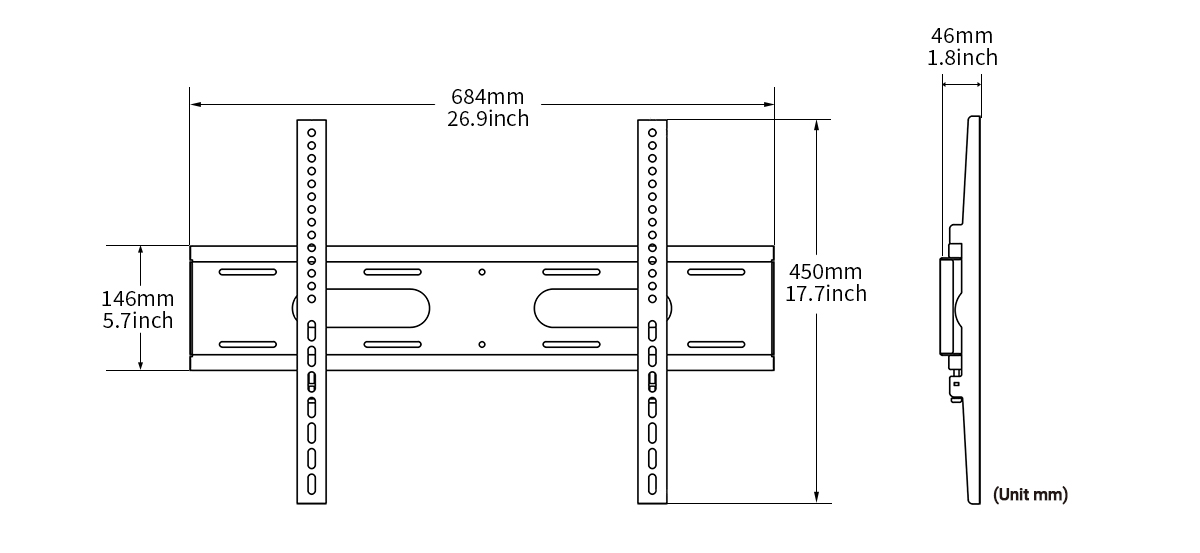

Product size picture

Information

Model No.
MW-1010
Compatible Screens
43″-55″
VESA
600×400mm(max)
Bearing Capacity
50kg（max）
Dimensions (mm)
684.5×46×450
Net Weight
2.7kg
Package
170×70×720mm
Gross Weight
3.2kg
Material
SPCC
Surface Finishing
Powder coating
