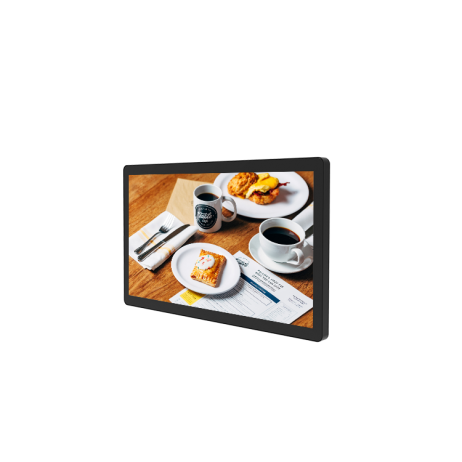

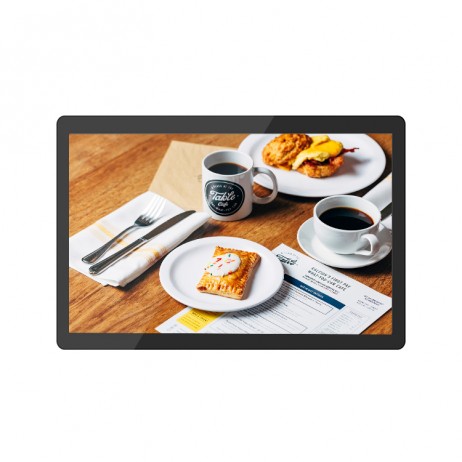

TC-2300

23.8 inch Touchscreen Computers

Features

• IPS commercial screen

• 10 Points capacitive touch

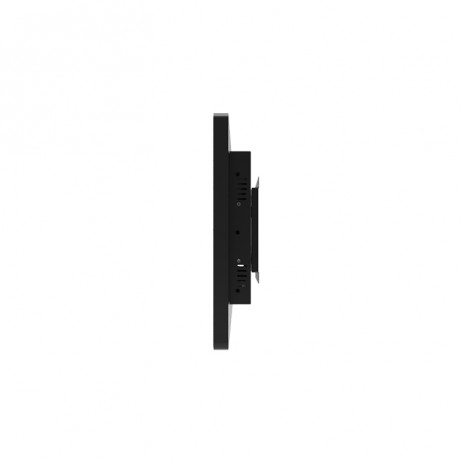

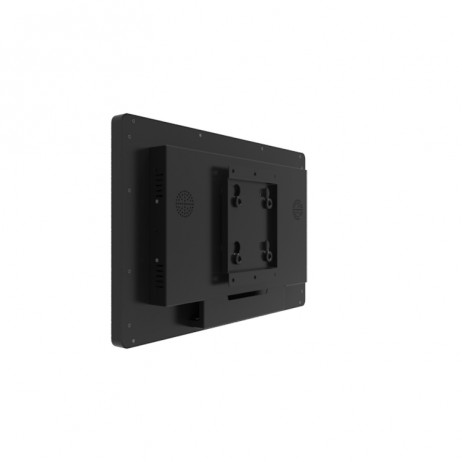

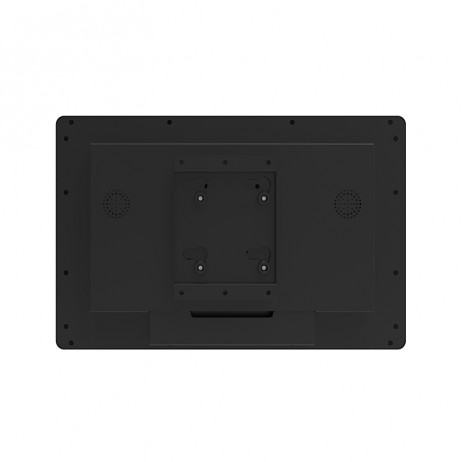

• Supports standard VESA horizontal and vertical mounting

Overview Application Specs Resources

Touchscreen computers tc2300

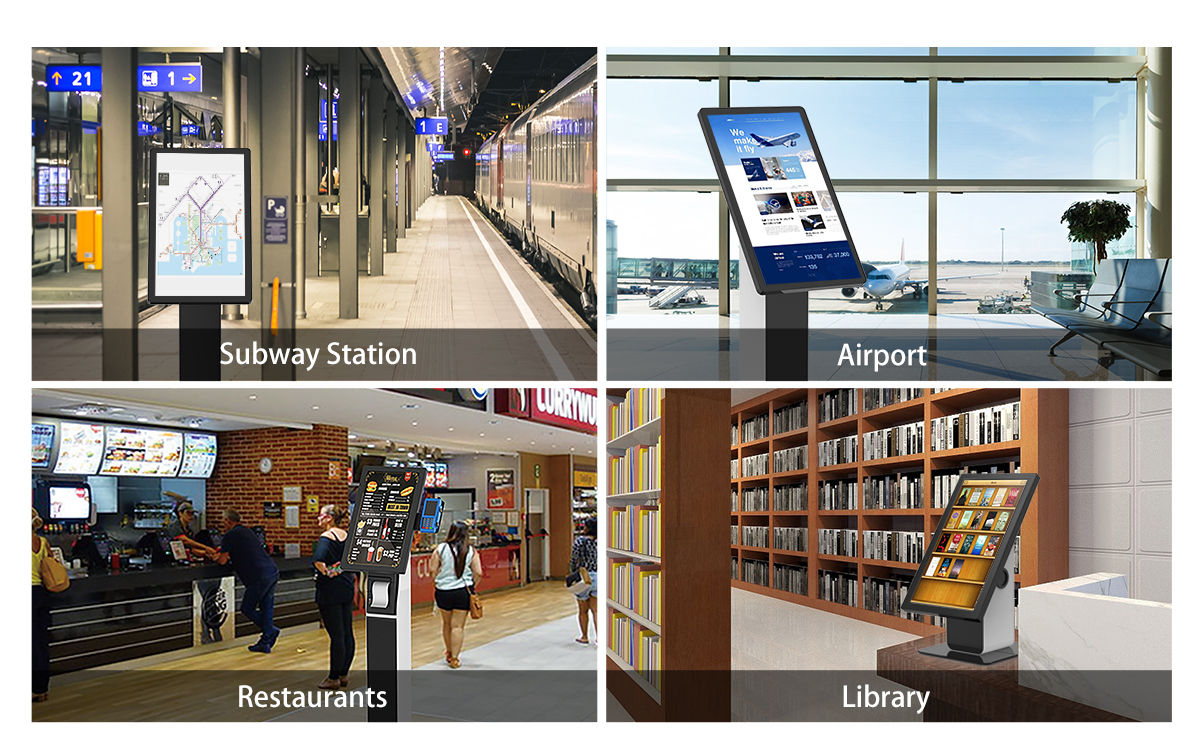

Application

Specs

TC-2300

Product size picture

OS Support

WIN 10 (trial version)
CPU
Intel Celeron J6412 quad-core 2.0G
System Memory
4G/8G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*4/RJ45*1
Network
Etherner/WIFI
Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
2G/4G
Disk
16G/32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI

Screen

Type
PCAP 10 points
Response Time
10ms

LCD

Type
TFT-LCD
Contrast Ratio
1000:1
Screen size
23.8 inch
Response Time
14ms
Max Resolution
1920x1080
Viewing Angle
H178º V178º
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
250cd/m²
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC,50/60HZ
Power Consumption
<40W/12VDC

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
571×348.6×91.1mm
Package
807×448.5×190.0mm
Net Weight
8.1kg
Gross Weight
10.5kg

Application

Working Temperature
0～40℃
Storage Temperature
-20～60℃
Working Humidity
20%～80%
Storage Humidity
10%～90%
Application
Indoor

Build-in Devices

Camera
Option
Scanner
Option
Card Reader
Option
Card Reader Holder
Option
