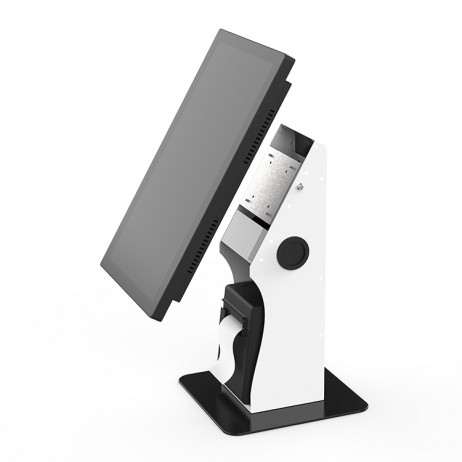

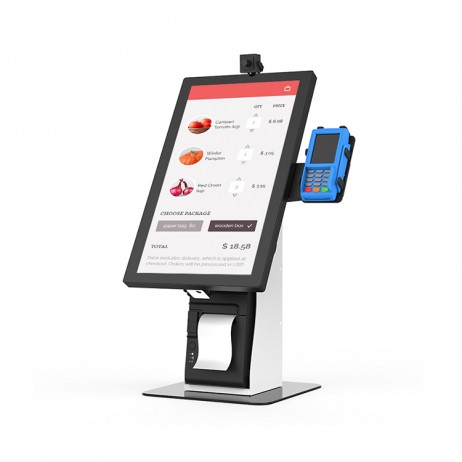

Maken - 21.5 inch Self-checkout Kiosk KH-2100C

KH-2100C

21.5 inch Self-checkout Kiosk

Features

• 21.5 inch HD touch screen

• 10 points PCAP touch

• Support Ethernet & WiFi

• Options: printer, scanner, card reader holder and camera

• Application: countertop

Overview Application Specs Resources

Self-checkout kiosk kh2100c

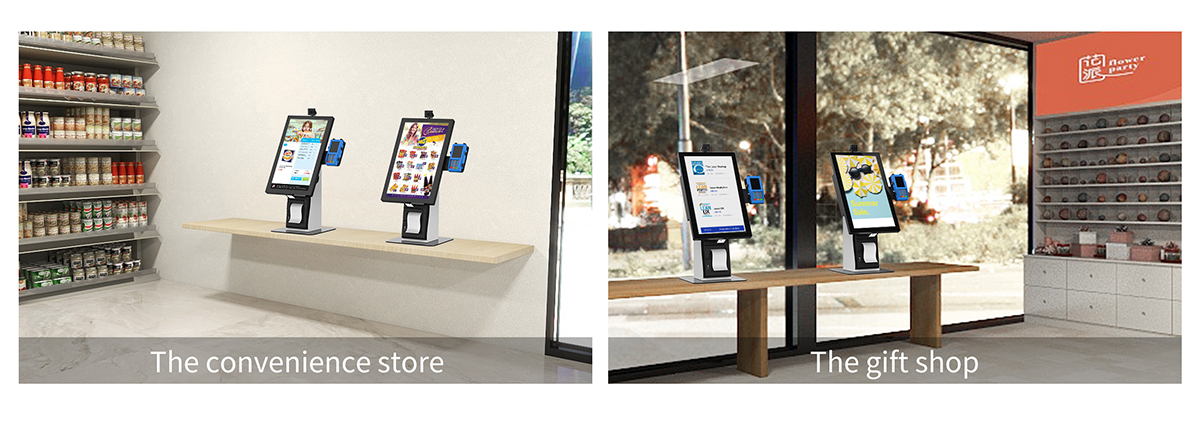

Application

Specs

KH-2100

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Etherner/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

Projective Capacitive Touch(10 points)

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

3000:1

Screen size

21.5"

Response Time

18ms

Max Resolution

1920x1080

Viewing Angle

H178º V178º

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

300cd/m²

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60HZ

Power Consumption

<40W

Enclosure

Material

SPCC

Surface

Powder coating

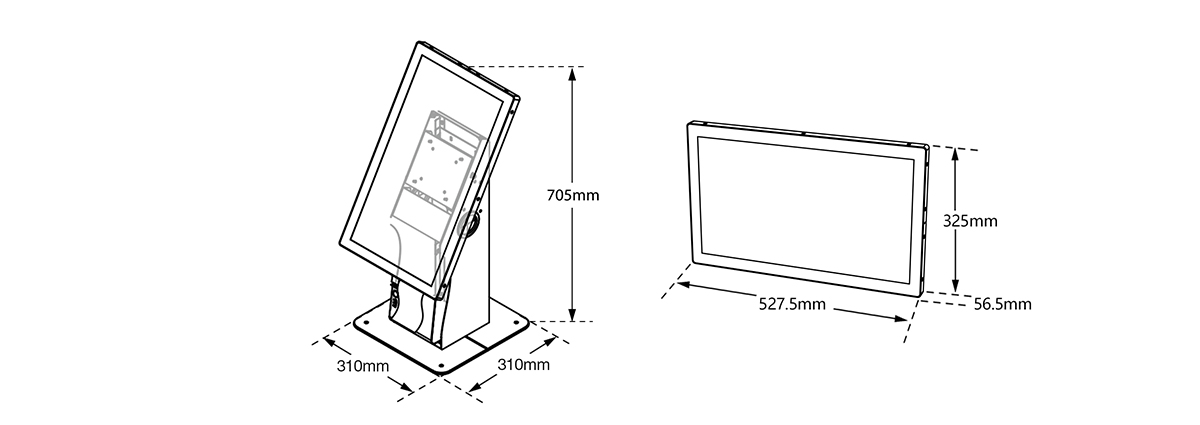

Overall Size

L325×W340×H705mm

Package

L595×W220×H230(Countertop stand)
L650×W450×H190(21.5" monitor)

Net Weight

16.5kg

Gross Weight

12kg（Countertop stand） / 10.5kg（21.5" monitor）

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

Build-in Devices

Optional

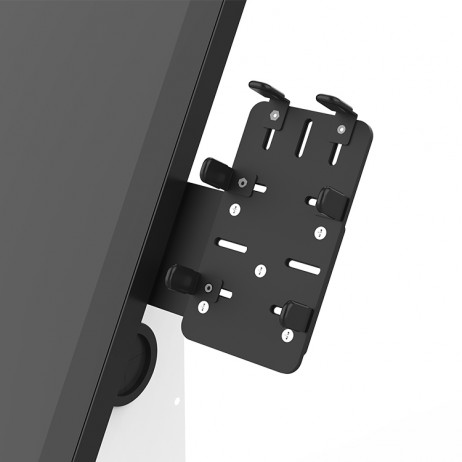

printer, scanner, card reader holder(width 52~92mm) and camera

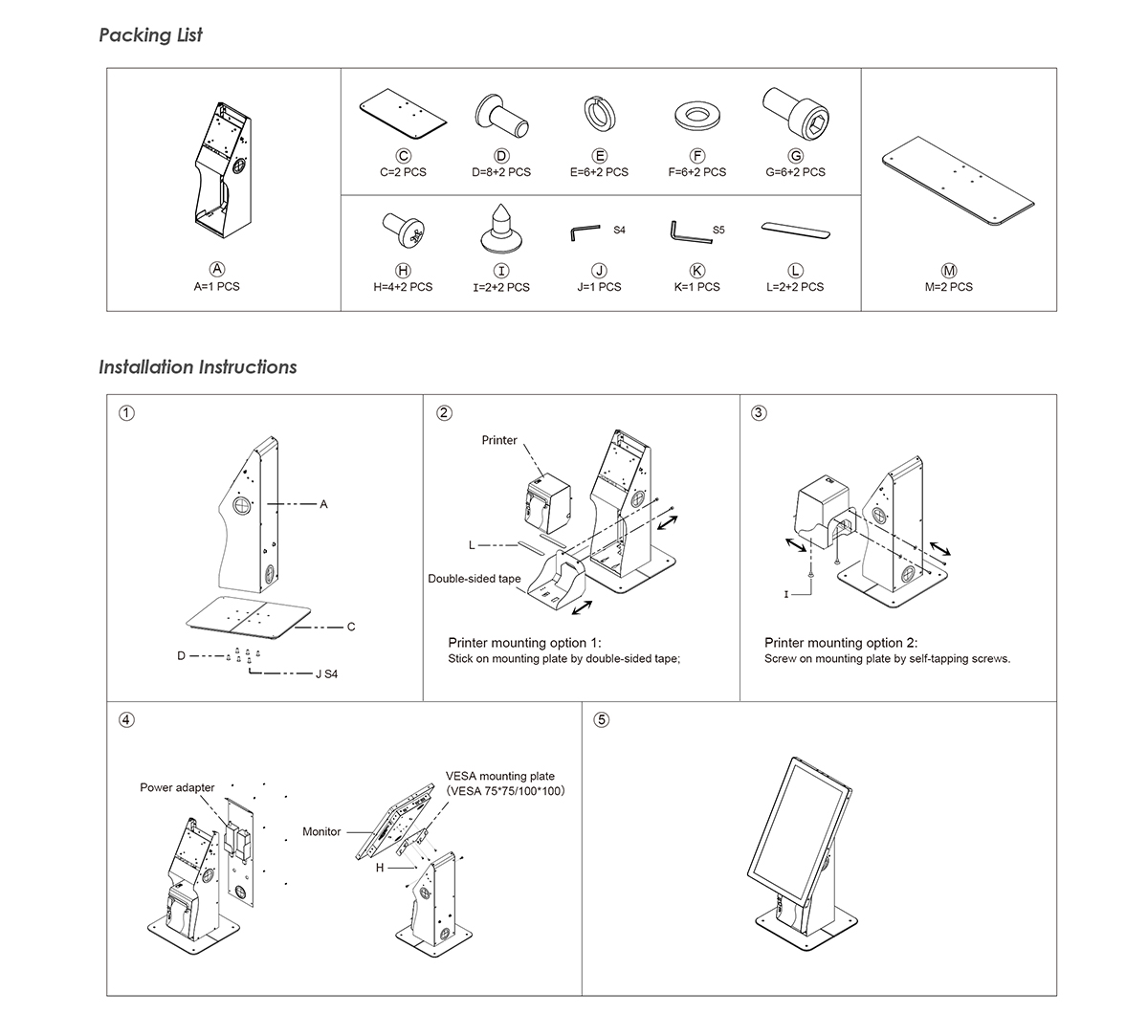

Assembly & Installation

Resources

Brochure（PDF）
