Maken - 27 inch Self-checkout Kiosk KR-2700

KR-2700

27 inch Self-checkout Kiosk

Features

• 10 points PCAP touch

• Built-in printer/scanner/camera

• Support Ethernet & WiFi

• Application: flooring/wall-mounting

VIDEO

Overview Application Specs Resources

Self-checkout kiosk kr2700

Application

Specs

KR-2700

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Ethernet/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Ethernet/WIFI

Screen

Type

Projected capacitive touch (10 points)

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

3000:1

Screen size

27〞

Response Time

12ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

300cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜110W

Enclosure

Material

SPCC

Surface

Powder coated

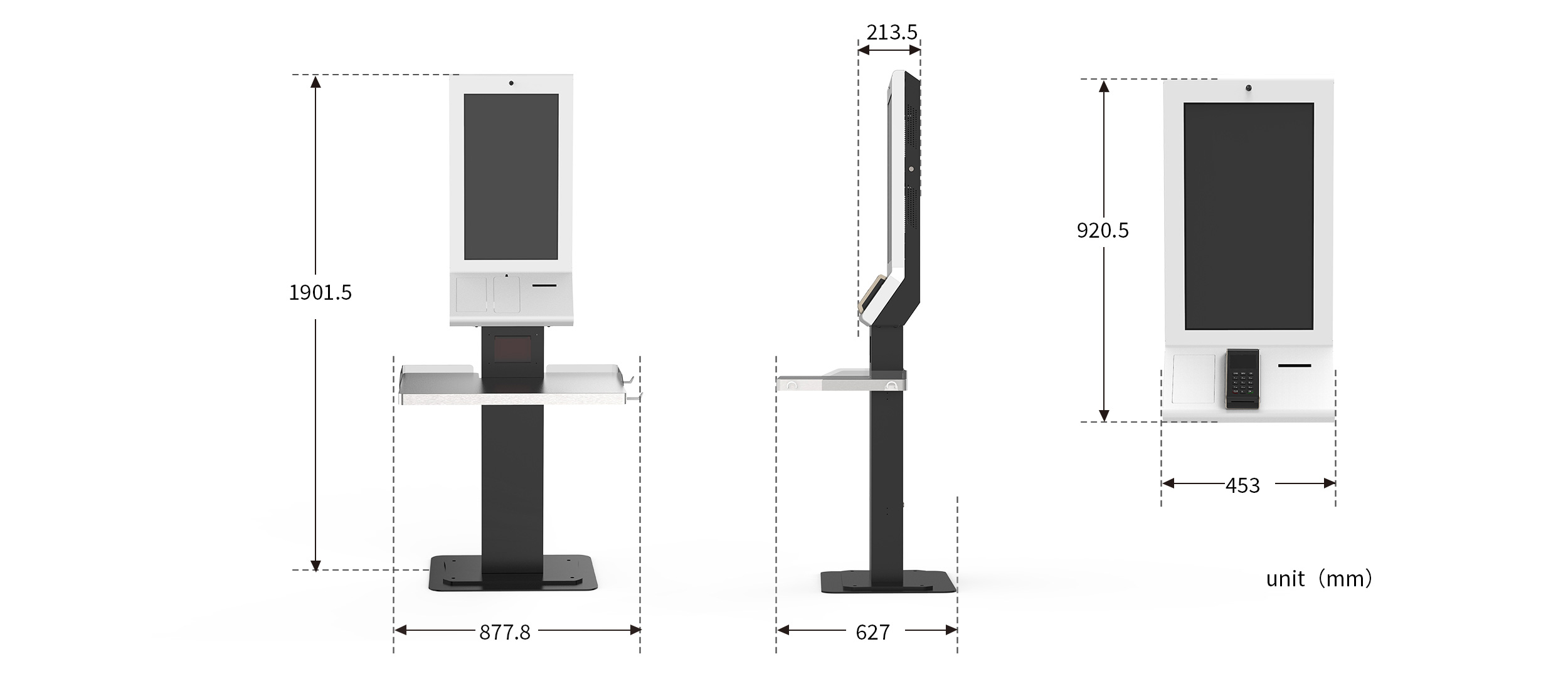

Overall Size

L627×W877.8×H1901.5mm(Flooring）
L213.5×W453×H920.5mm （Wall-mounting）

Package

L345×W583×H1050.5mm（Wall-mounting）

Net Weight

75.752kg(Flooring)
27kg(Wall-mounting)

Gross Weight

35kg（Wall-mounting）

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

Indoor

Devices

Printer

Thermal printer with cutter, paper roll 80mm * 80mm

Scanner

2D,area-imaging scanner

Camera

2 million pixels, prime lens,1920*1080@30fps

Resources

Brochure（PDF）
