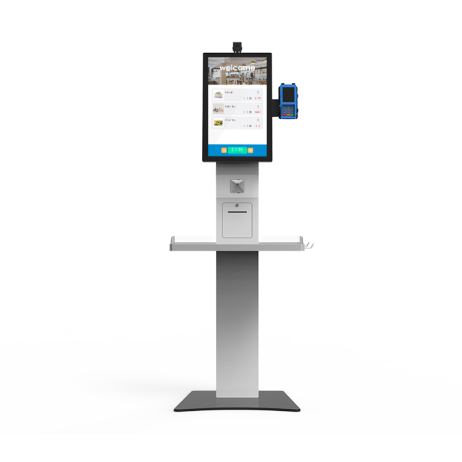

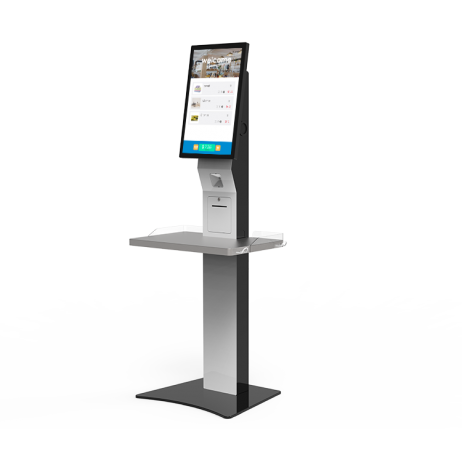

Self-checkout kiosk kr2100
Self-checkout kiosk kr2100-built in printer

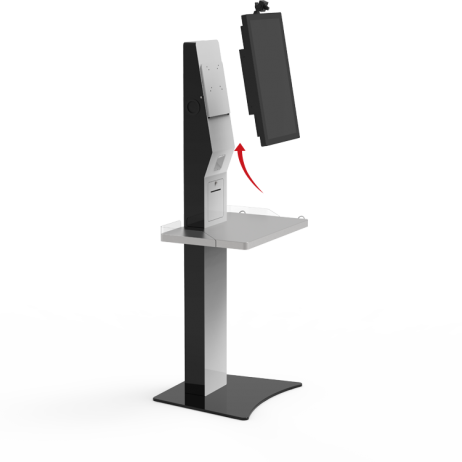

Self-checkout kiosk kr2100-standard VESA mounting

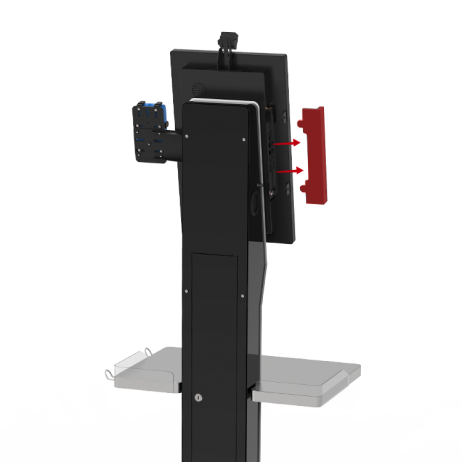

Self-checkout kiosk kr2100-lockable cable routing

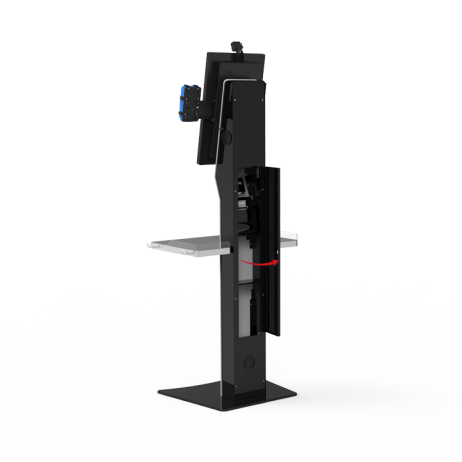

Self-checkout kiosk kr2100-cable cover

KR-2100

21.5 inch Self-checkout Kiosk

Features

• Compatible with 21.5/27 inch touch screen

• 10 points PCAP touch

• Built-in scanner, built-in printer

• Support Ethernet & WiFi

• Options: card reader holder, camera

Overview Application Specs Resources

Self-checkout kiosk kr2100

Application

Specs

KR-2100

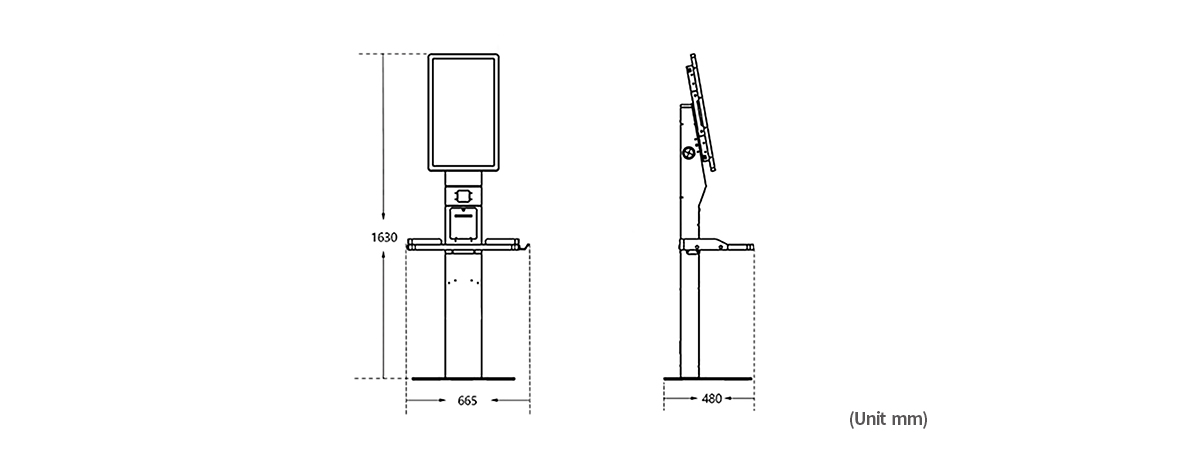

Product size picture

OS Support

WIN10 (trial version)
CPU
Intel Celeron J6412 quad-core 2.0G
System Memory
4G/8G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*4/RJ45*1
Network
Ethernet/WIFI
Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
2G/4G
Disk
16G/32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Ethernet/WIFI

Screen

Type
PCAP 10 points
Response Time
10ms

LCD

Type
TFT-LCD
Contrast Ratio
3000:1
Screen Size
21.5 inch
Response Time
18ms
Max Resolution
1920×1080
Viewing Angle
H178° V178°
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
300cd/㎡
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC , 50/60HZ
Power Consumption
<40W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
L665×W480×H1630mm
Package
L1640×W555×H285mm
L650×W450×H190(21.5 inch moniter)
Net Weight
57kg
Gross Weight
53.5kg
10.5kg（21.5 inch moniter）

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20~80℃
Storage Humidity
10~90℃
Application
Indoor

Devices

Printer
80mm thermal printer with auto cutter
Scanner
2D,area-imaging scanner
Camera
Option
Card Reader Holder
Option( excl. card reader)(width 52~92mm)
