KR-1900

19 inch Self-checkout Kiosk

Features

• Stylish payment terminals integrated with touch screen, dual scanning windows, card reader holder, and printer holder, free rotatable metal allocation for each module, offering brilliant operation experience.

• Multi-touch screen,  easy operation and fast response

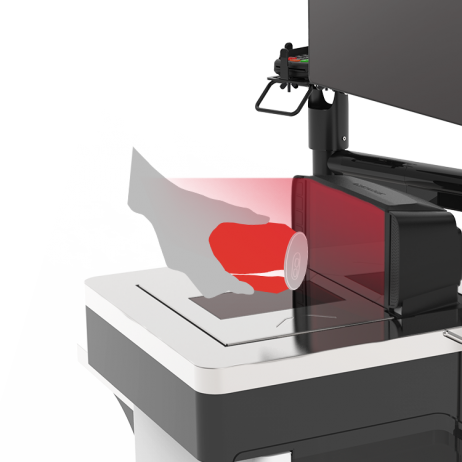

• Datalogic  9300i (only scanner, optional with weight scale) 2D high performance scanner, equipped with horizontal and vertical dual windows for scanning

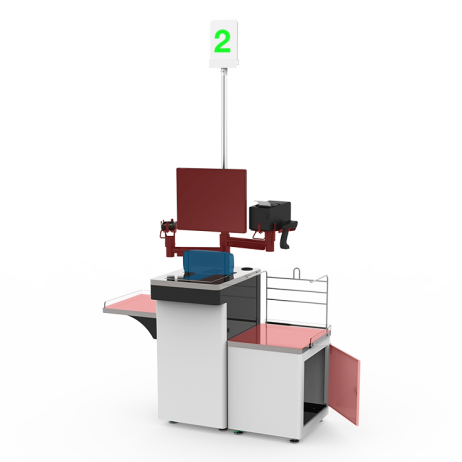

• Combined with two storage platforms on left and right sides


Self-checkout kiosk kr1900

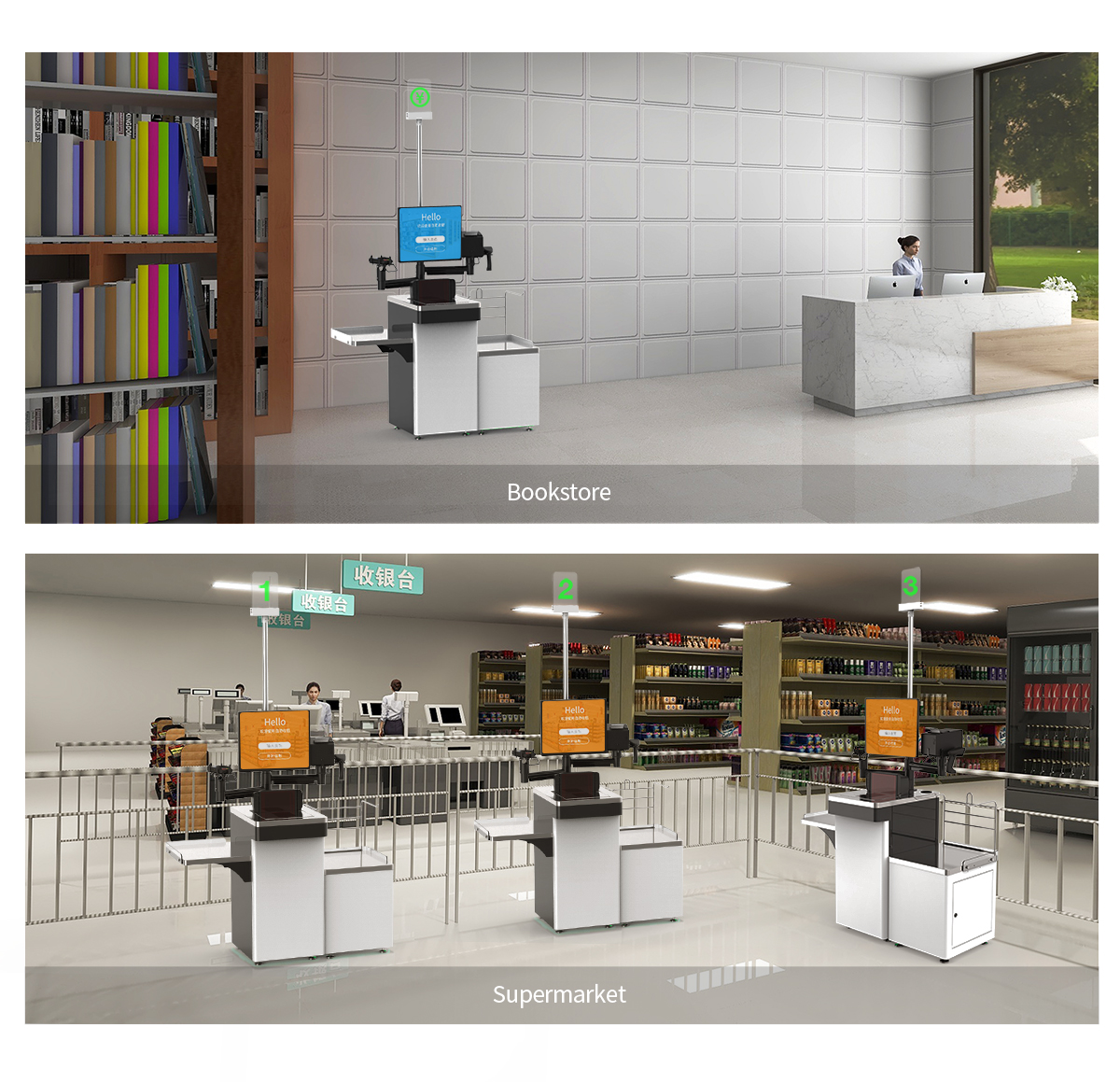

Application

Specs

KR-1900

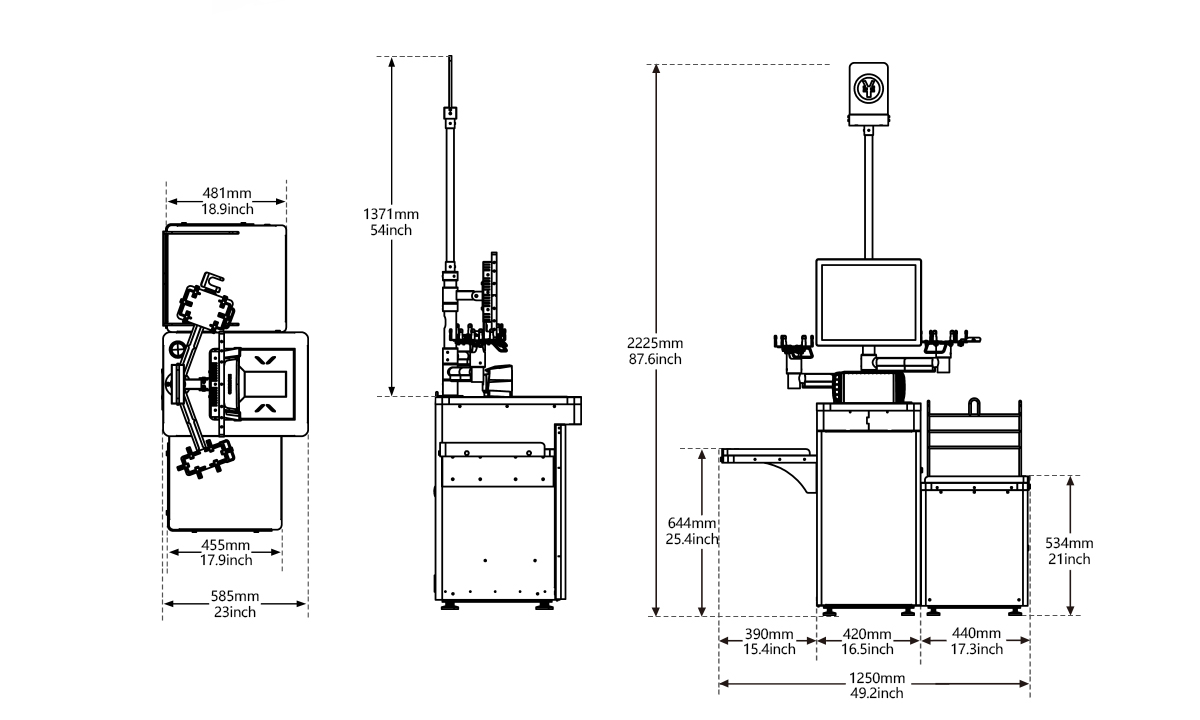

Product size picture

OS Support

WIN10 (Trial version)
CPU
Intel Celeron J6412 quad-core 2.0G
System Memory
4G/8G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*5/RJ45*1
Network
Ethernet/WIFI
Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
2G/4G
Disk
16G/32G/64G
Speaker
5W*2
Interface
USB*3/RJ45*1
Network
Ethernet/WIFI

Screen

Type
Projected capacitive touch (10 points)
Response Time
10ms

LCD

Type
TFT-LCD
Contrast Ratio
1000:1
Screen size
19"
Response Time
5ms
Max Resolution
1280×1024
Viewing Angle
H178° V178°
Aspect Ratio
5:4
Display Colors
16.7M
Brightness
250cd/㎡
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC , 50/60HZ
Power Consumption
<165W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
L1250×W585×H2225mm
Package
L1230×W705×H1185mm
Net Weight
83kg
Gross Weight
113kg

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%
Application
Indoor

Devices

Scanner
Datalogic 9300i (939403)(only scanner) . Vertical/horizontal dual windows for scanning
Printer(option)
Thermal printer with cutter, paper roll 80mm * 80mm
UPS(option)
660w / 1100va, sustainable power supply for half an hour
