Maken - 32 Inch Multifunction Self-Ordering Kiosk KH-3210

KH-3210

32 Inch Multifunction Self-Ordering Kiosk

Features

● 32 inch HD commercial display screen

● 10 points PCAP touch

● Built-in printer,wide-angle scanner,2D camera

● Application: single screen flooring/dual-screen flooring/wall mounting

Overview Application Specs Resources

32 inch multifunction self-ordering kiosk kh3210

Application

Specs

KH-3210

OS Support

WIN 10 (Trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Ethernet/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Ethernet/WIFI

Screen

Type

Projected capacitive touch (10 points)

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen Size

32 inch

Response Time

8ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

400cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜120W

Enclosure

Material

SPCC

Surface

Powder coated

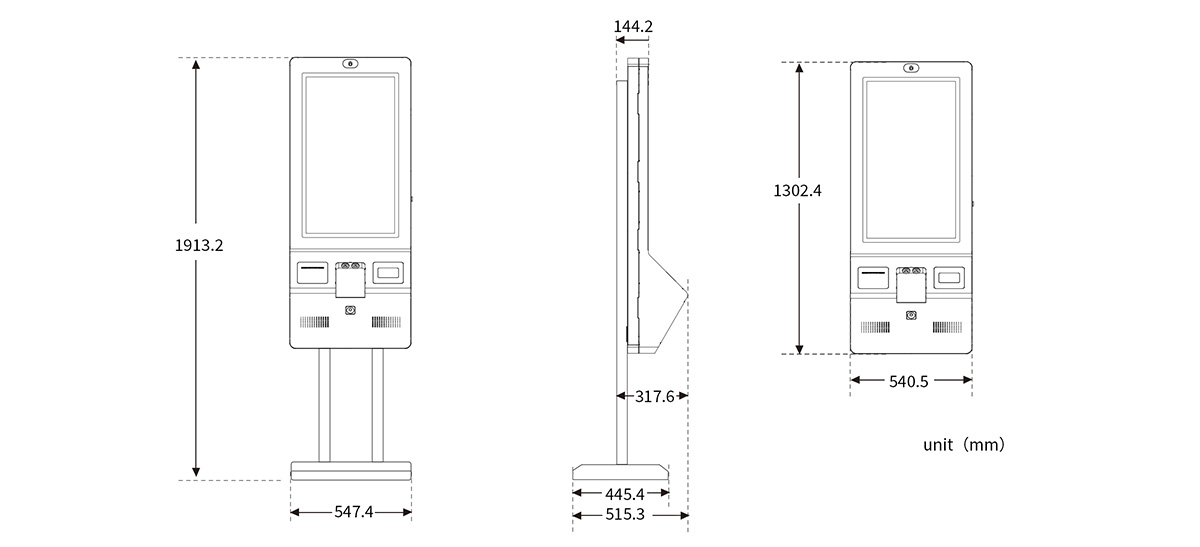

Overall Size

W540.5mm×D317mm×H1302.5mm（Wall mounting）
W548mm×D515mm×H1912.5mm(Single screen flooring）

Package

1475mm×475mm×790mm（Wall mounting）
1950mm×535mm×790mm(Single screen flooring）

Net Weight

47.0kg（Wall mounting）
89.0kg(Single screen flooring）

Gross Weight

86.0kg（Wall mounting）
129.0kg(Single screen flooring）

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

Devices

Printer

Thermal printer with cutter,paper roll 80mm *80mm

Scanner

2D,Area-imaging scanner

Camera

2 million pixels,prime lens,1920*1080@30fps

Card Reader

Customized

Resources

Brochure（PDF）
