Maken - Information Kiosk KF-4310

KF-4310

Information Kiosk

Features

• The stand is compatible with 43-55 inch monitor

• The monitor and stand could be available separately

Overview Application Specs Resources

Information kiosk kf4310

Application

Specs

KF-4310

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Etherner/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

Projective Capacitive Touch(10 points)

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen size

43" , 55"

Response Time

8ms

Max Resolution

1920x1080

Viewing Angle

H178º V178º

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

350cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60HZ

Power Consumption

<75W(43") , <100W(55")

Enclosure

Material

SPCC

Surface

Powder coating

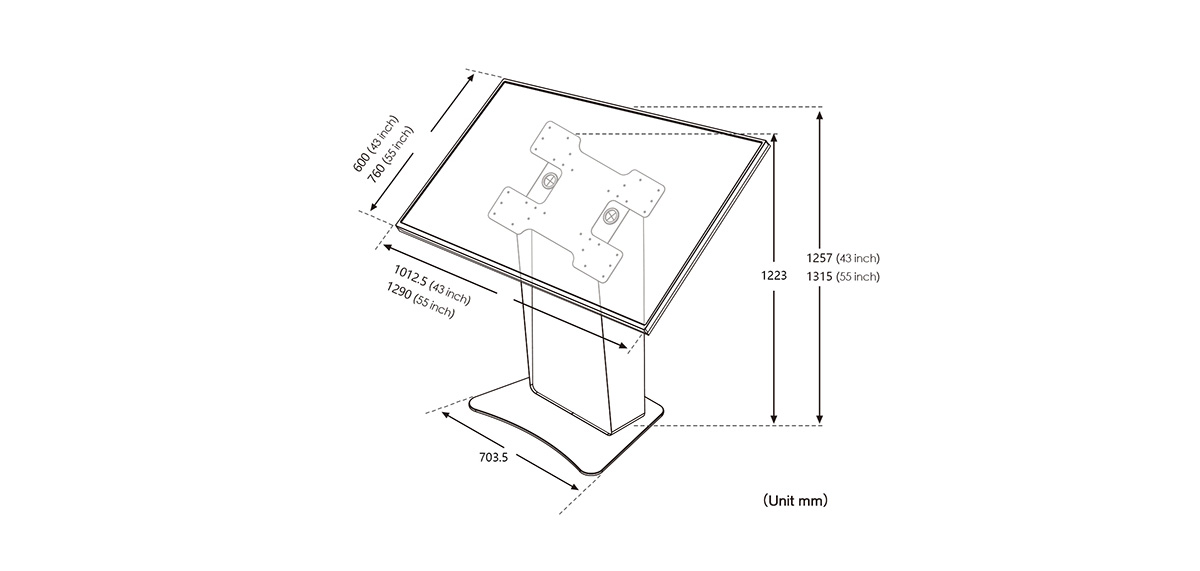

Overall Size

L703.5×W529×H1223(stand )
L1012.5×W529×H1257(with 43" monitor)
L1290×W605×H1315(with 55" monitor)

Package

L1275×W385×H620(stand)
L1135×W210×H745(only 43" monitor)
L1445×W235×H930(only 55" monitor)

Net Weight

49.5kg(stand) , 72.5kg(with 43" monitor) , 89.5kg(with 55" monitor)

Gross Weight

54.5kg(stand) , 27.5kg(only 43" monitor) , 48kg(only 55" monitor)

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

Assembly & Installation

Resources

Brochure（PDF）
