Maken - Electric Lifting Stand SF-2103E

SF-2103E

Electric Lifting Stand

Features

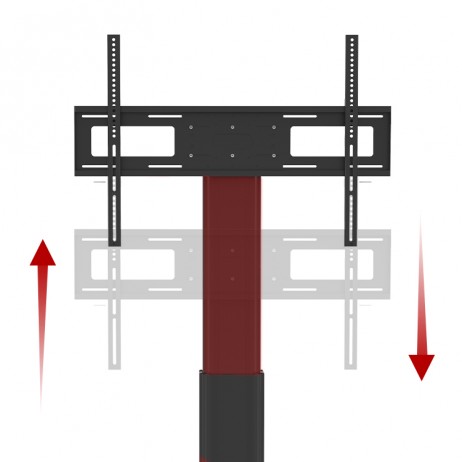

• One click lifting, adjustable lifting height at 600mm

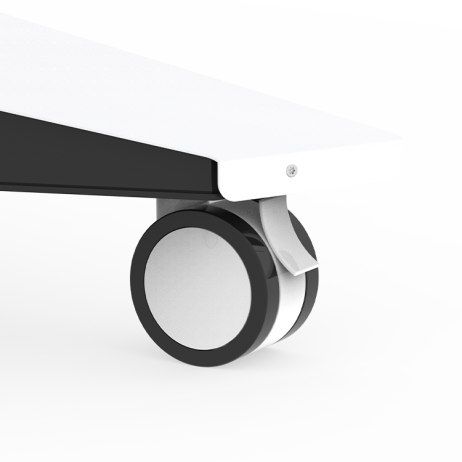

• Universal caster, silent movement

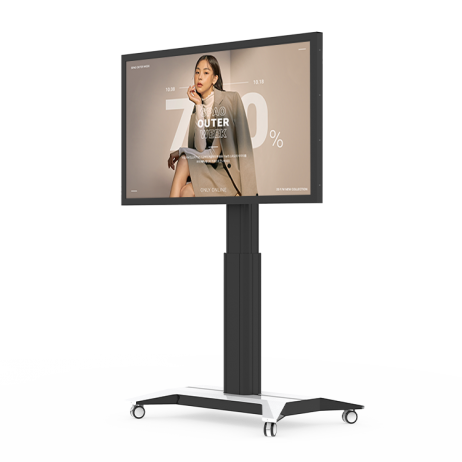

• Suitable for 55-65 inch screen

• Option: wire/wireless remote control

Overview Application Specs Resources

Electric lifting stand sf2103e

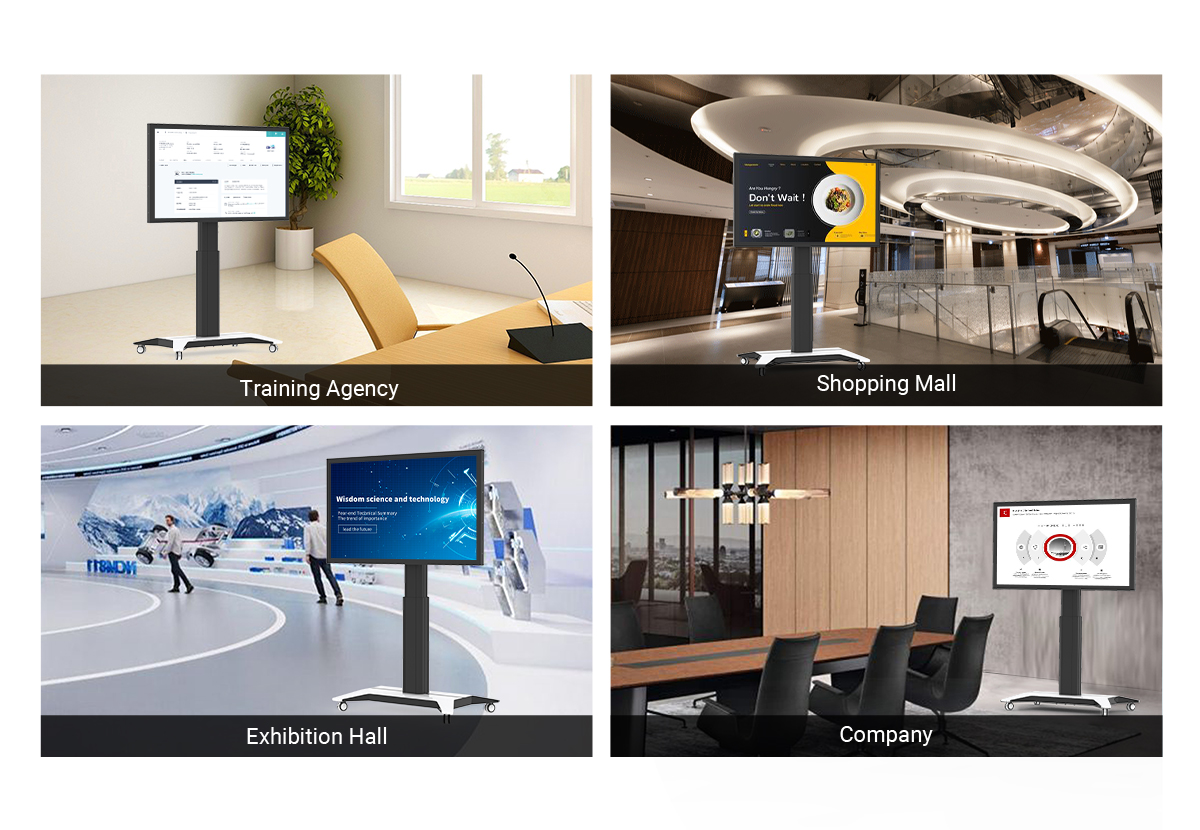

Application

Specs

SF-2103E

Information

Model No.

SF-2103E

Compatible Screens

55″-65″

VESA

900×600mm(max)

Material

SPCC+Aluminum(the lifting stand)

Surface Finishing

Powder coating+ Anodizing(the lifting stand)

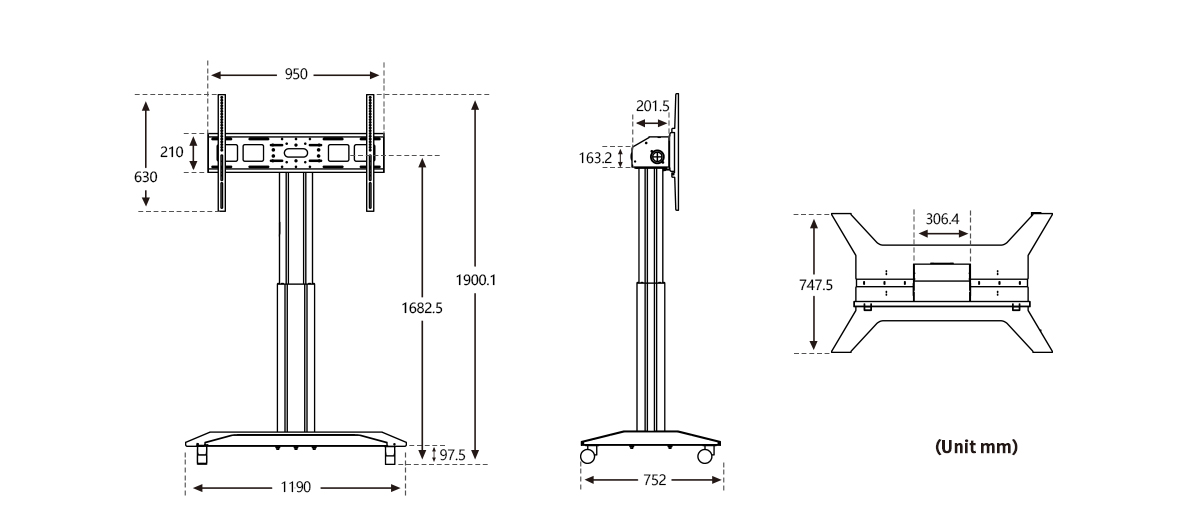

Overall Size

1190×752×1682.5mm(the center height of bracket)

Net Weight

69.5kg

Lifting height

Adjustable height is at 60cm, and the center height of screen ranges from 1080mm to 1680mm.

Response Time

11mm/s

Bearing Capacity

80kg,the maximum eccentricity is 25cm.

Remote Control

Wire/wireless remote control(option)

Motor Power

100W(maximum)

Warm Tips:

1、The maximum continuous working time of the motor shall not exceed 2 minutes. It can re-work again after taking a break for 20 minutes.
2、Movement: please move by pushing the stand but not the bracket or screen etc.

Resources

Brochure（PDF）
