KH-3220

27/32 inch Dual-screen Vertical Ordering Kiosk

Features

• HD commercial display screen

• 10-point capacitive touch

• Option: 27 inch screen/32 inch screen

Overview Application Specs Resources

Dual-screen vertical ordering kiosk kh3220

Application

Specs

KH-2720

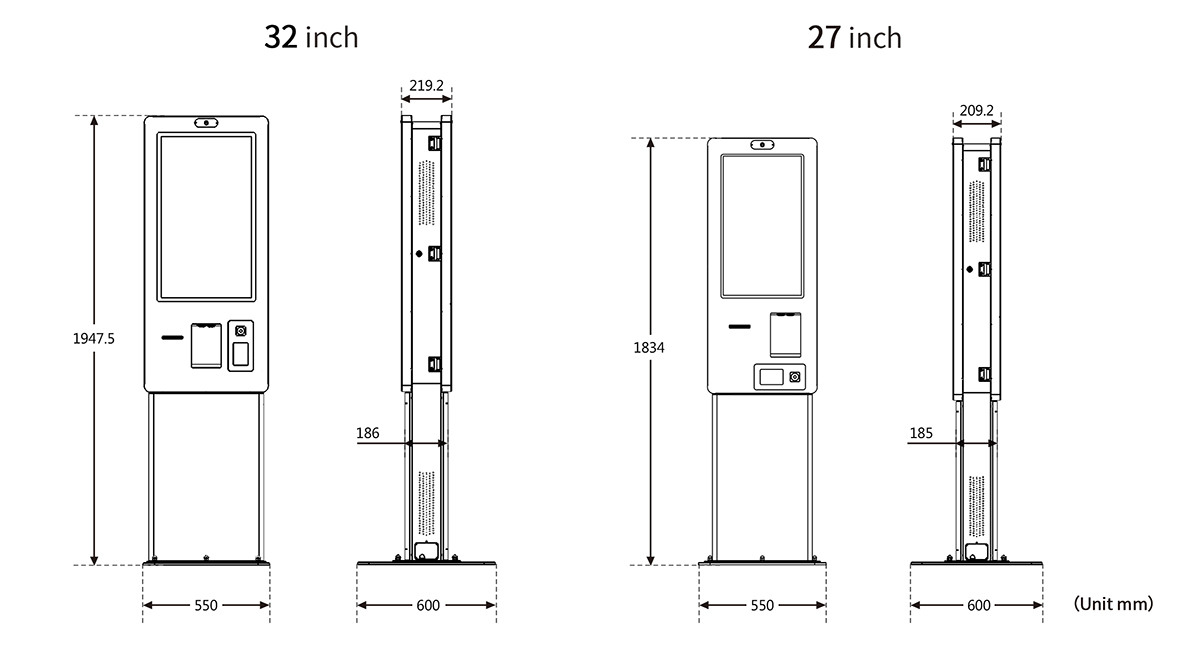

Product size picture

OS Support

WIN 10 (trial version)
CPU
Intel Celeron J6412 quad-core 2.0G
System Memory
4G/8G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*4/RJ45*1
Network
Ethernet/WIFI
Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
2G/4G
Disk
16G/32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Ethernet/WIFI

Screen

Type
PCAP 10 points
Response Time
10ms

LCD

Type
TFT-LCD
Contrast Ratio
3000:1
Screen size
27"
Response Time
12ms
Max Resolution
1920×1080
Viewing Angle
H178° V178°
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
300cd/㎡
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC,50/60Hz
Power Consumption
<220W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
550×600×1834
Package
1975×600×495
Net Weight
98.3kg
Gross Weight
118.7kg

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%
Application
indoor

Build-in Devices

Printer
80mm thermal printer with auto cutter
Scanner
2D,Area-Imaging Scanner
Camera
2 million pixels, prime lens,1920*1080@30fps

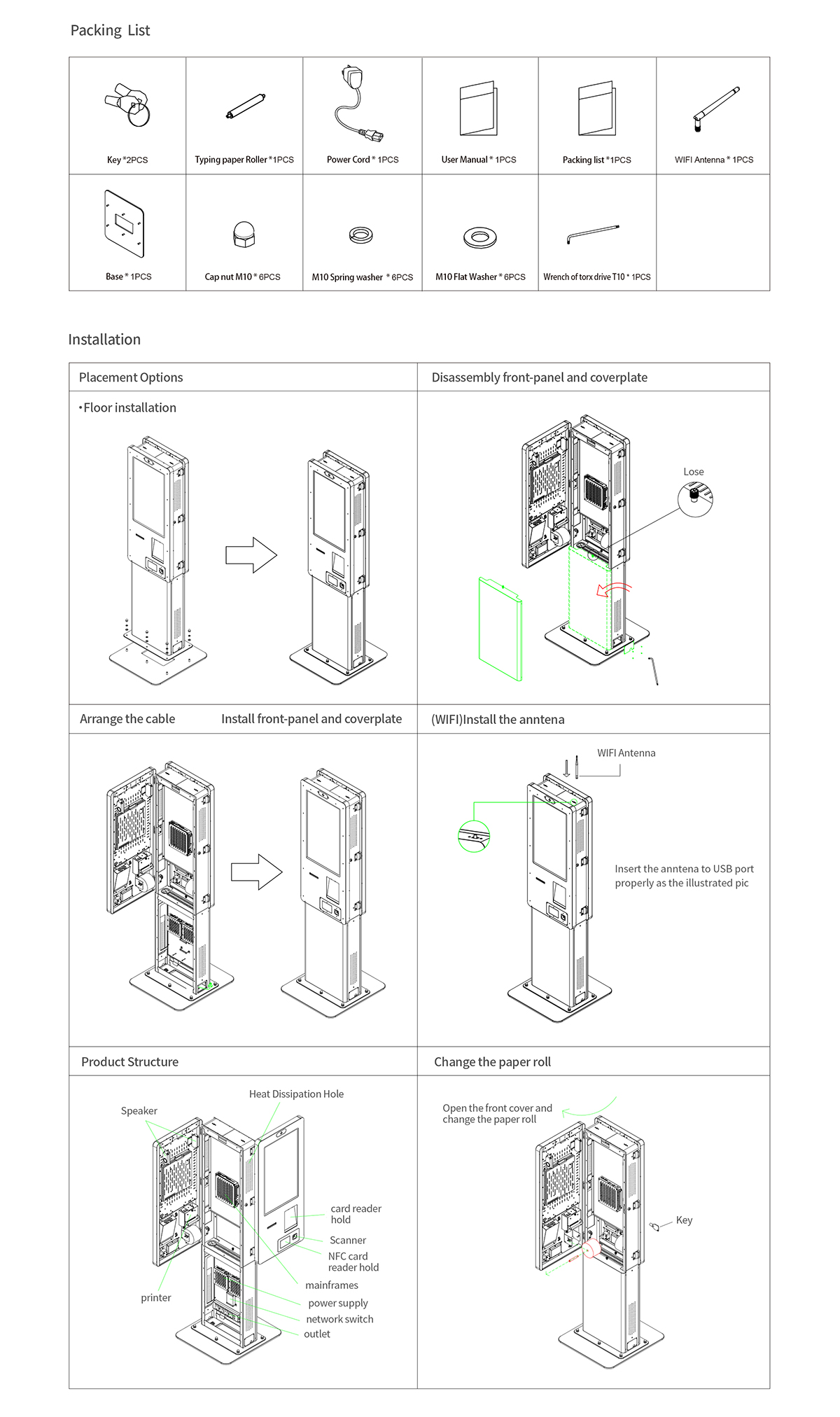

Assembly & Installation
