55 inch wall mounted digital signage dw5500

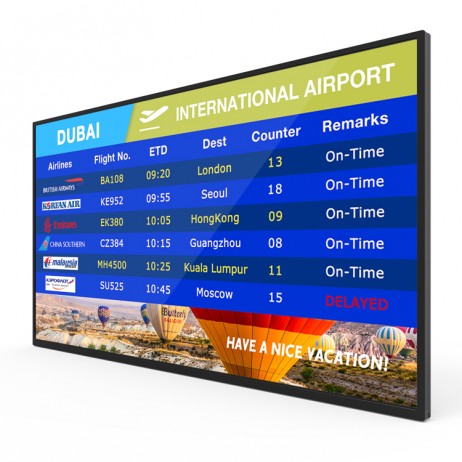

Digital signage dw5500 wall mounted-55 inch LG IPS 1080P HD screen

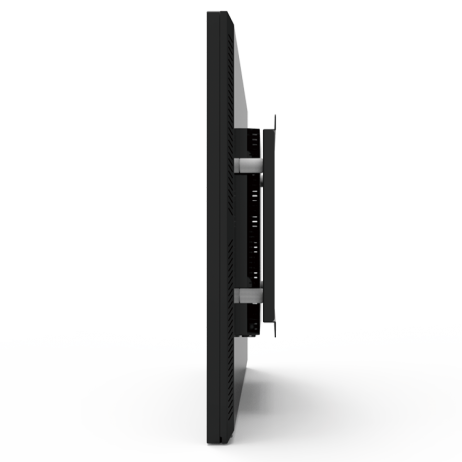

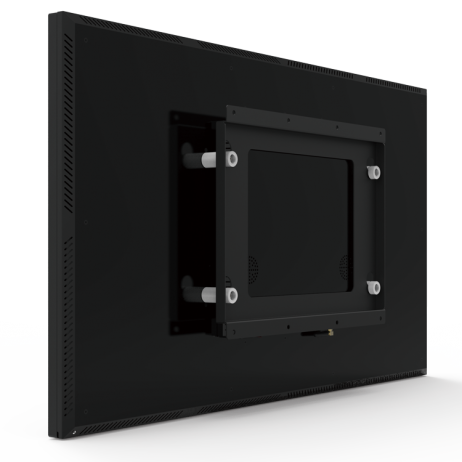

Digital signage dw5500 wall mounted-VESA, horizontal or vertical installation

DW-5500

55 Inch Wall Mounted Digital Signage

Features

• IPS 1080P HD high brightness screen
• Support standard VESA, horizontal or vertical installation
• Support Ethernet and WIFI

Overview Application Specs Resources

55 inch wall mounted digital signage dw5500

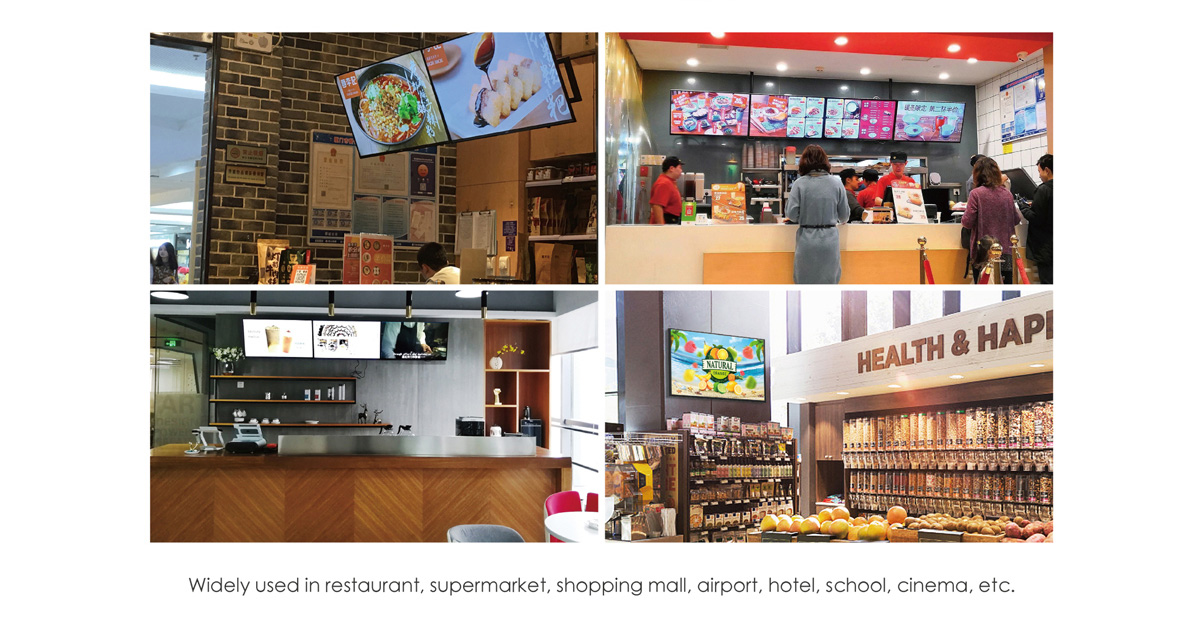

Application

Specs

DW-5500

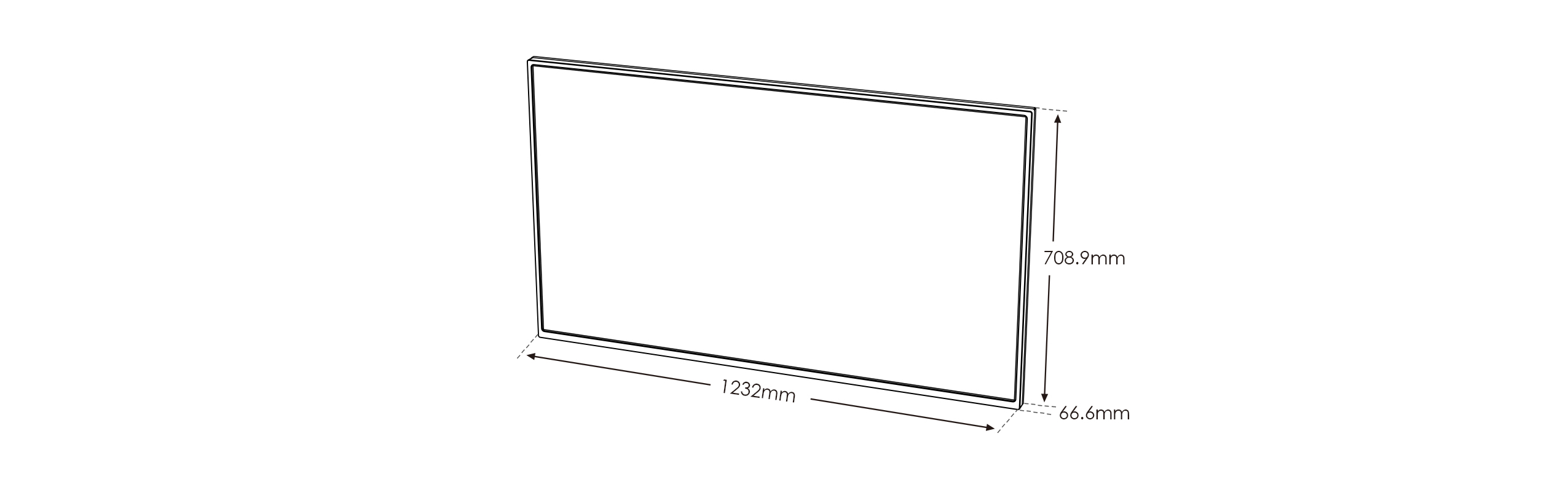

Product size picture

OS Support

WIN 10 (trial version)
CPU
Intel Celeron J6412 quad-core 2.0G
System Memory
4G/8G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*4/RJ45*1
Network
Etherner/WIFI
Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
2G/4G
Disk
16G/32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI

LCD

Type
TFT-LCD
Contrast Ratio
1200:1
Screen Size
55 inch
Response Time
8ms
Max Resolution
1920×1080
Viewing Angle
H178° V178°
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
350cd/㎡
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC,50/60Hz
Power Consumption
＜100W

Enclosure

Material
SPCC
Surface
Powder coating
Overall Size
L1232×W66.6×H708.9mm
Package
L1380×W225×H870mm
Net Weight
30.0kg
Gross Weight
38.0kg

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%
Application
indoor
