Maken - 55 Inch Combined Digital Signage DC-5500

DC-5500

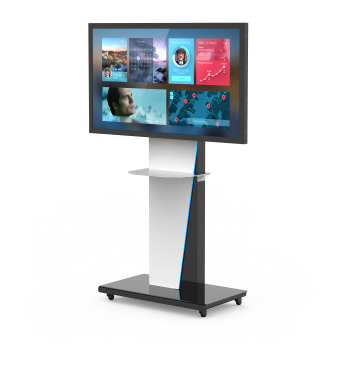

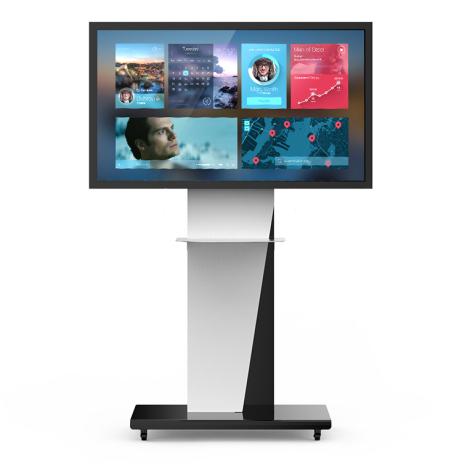

55 Inch Combined Digital Signage

Features

• 55 inch display screen, landscape

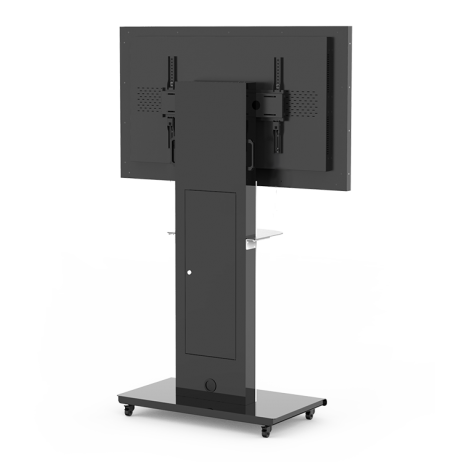

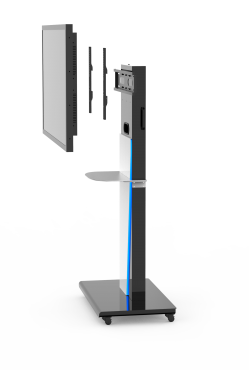

• Display screen and stand combined mounting, two-gear height adjustable

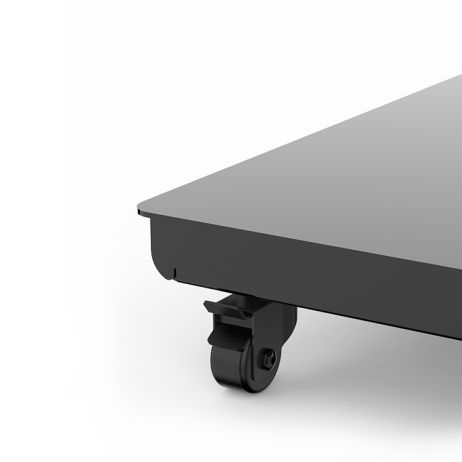

• Wheels configuration, steady movement

• Support Ethernet and WIFI

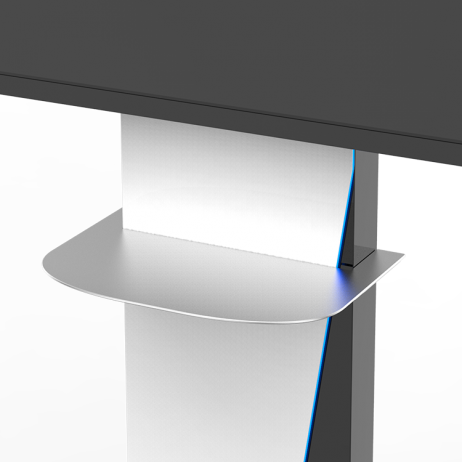

• Option: storage tray, display screen

Overview Application Specs Resources

55 inch combined digital signage dc5500

Application

Specs

DC-5500

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Etherner/WIFI

Android 7.1 and higher version

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

8G/16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

PCAP 10 points

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen size

55"

Response Time

8ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

350cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜100W

Enclosure

Material

SPCC

Surface

Powder coated

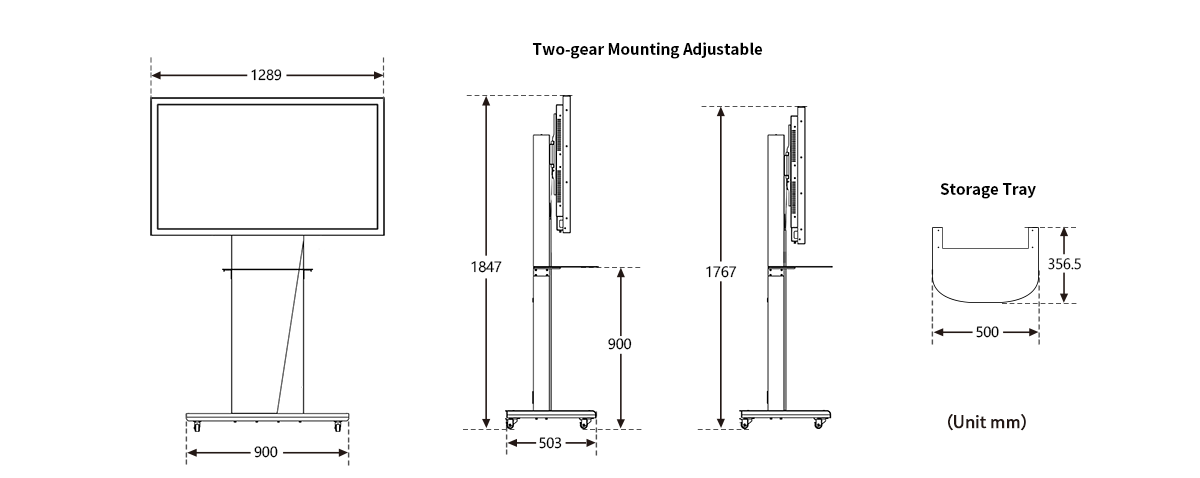

Overall Size

L1289×W512×H1847

Package

1680×565×270（stand）
1445×235×930（ 55 inch monitor）

Net Weight

103kg

Gross Weight

68kg（stand）
48kg（55 inch monitor）

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

Indoor

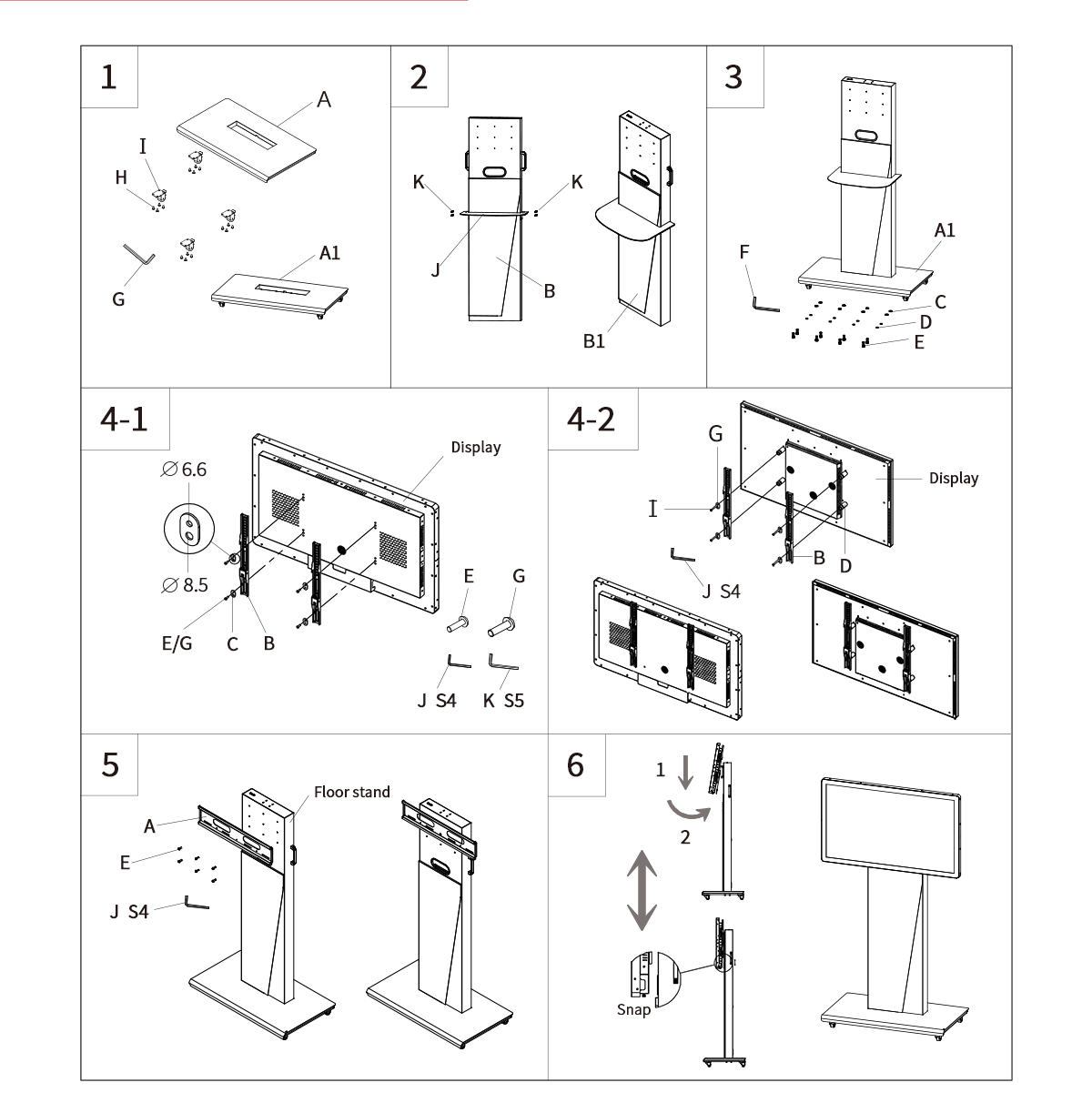

Assembly & Installation

Resources

Brochure（PDF）
