DF-4310

43 / 55 Inch Vertical Advertising Display

Features

 • Screen protected with tempered glass

 • 1080P HD display


VIDEO

Overview Application Specs Resources

43 or 55 inch vertical advertising display df4310

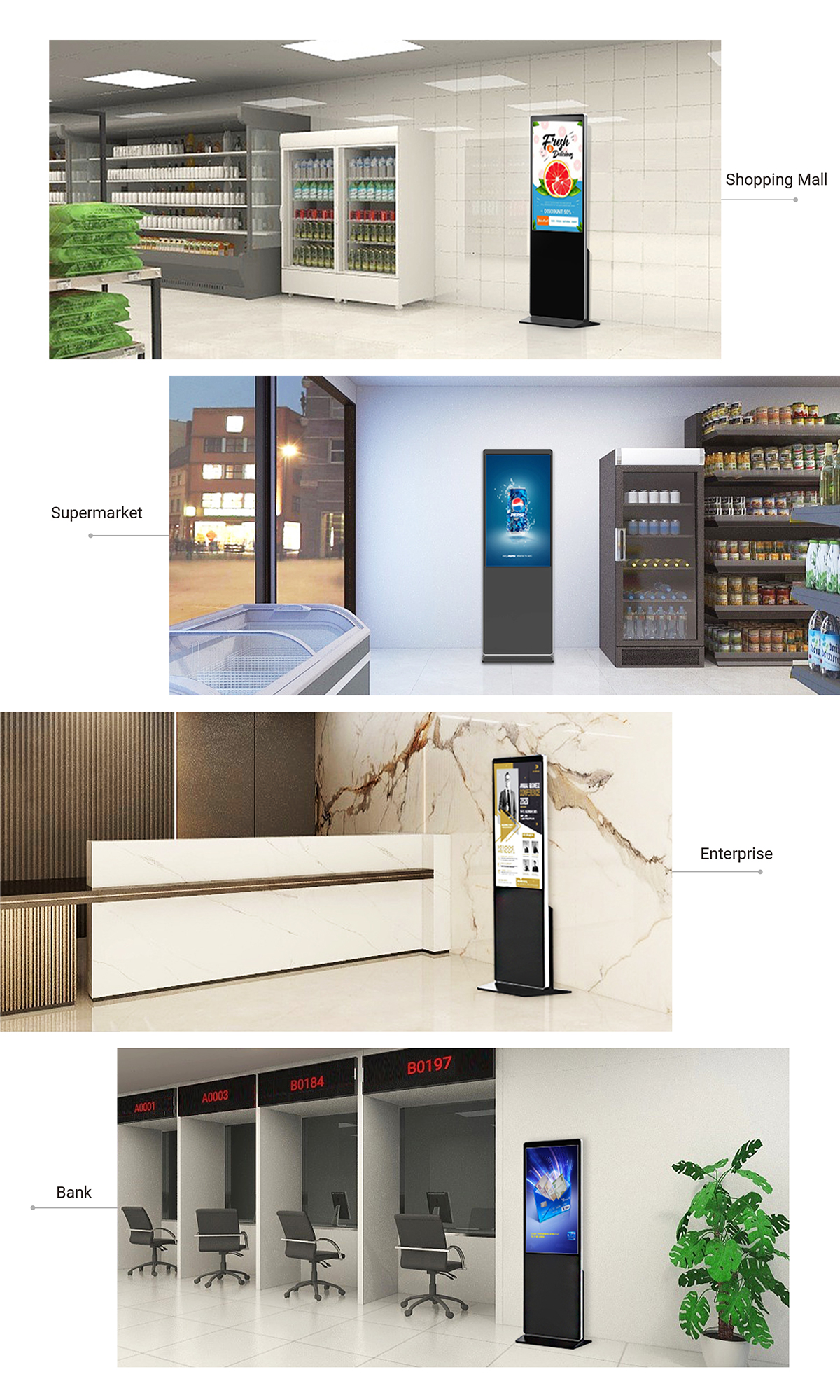

Application

Specs

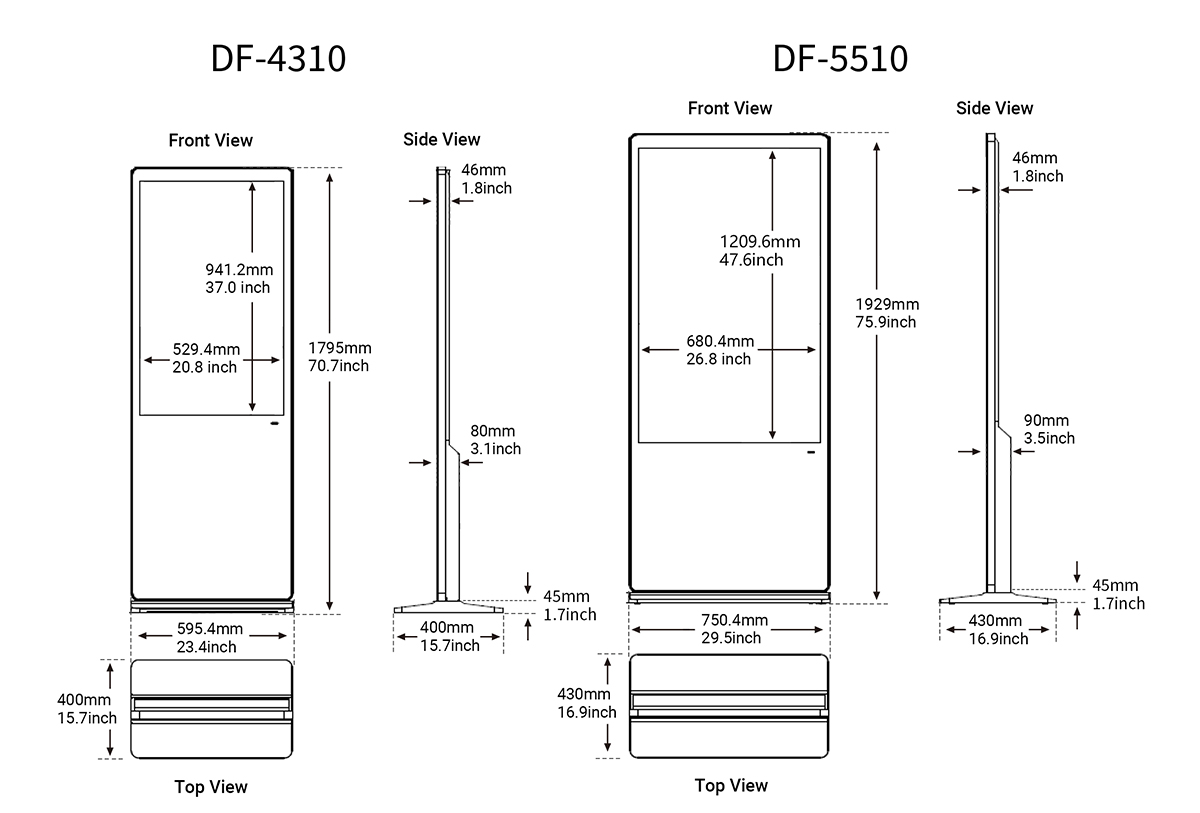

Product size picture

OS Support

WIN10（trial version）
CPU
Intel Celeron J1900 Quad-core 2G
System Memory
4G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI
Android 7.1（Non-touch model）
CPU
RK3288 Cortex-A17 quad-core 1.8GHz
System Memory
2G/4G
Disk
16G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI

LCD

Type
TFT-LCD
Contrast Ratio
1200:1
Screen size
43/55 inch
Response Time
8ms
Max Resolution
1920x1080
Viewing Angle
H178º V178º
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
350cd/m²
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC,50/60HZ
Power Consumption
<90W（43 inch），<130W（55inch）

Enclosure

Material
Aluminum alloy and SPCC
Surface
Anodic oxidation and Powder coating
Overall Size
595.4×400×1795mm（43 inch）
750.4×430×1929mm（55inch）
Package
1870×220×705mm（43 inch）
2005×230×855mm（55inch）
Net Weight
43.5kg（43 inch）
60kg（55 inch）
Gross Weight
48kg（43 inch）
65kg（55 inch）

Application

Working Temperature
0～40℃
Storage Temperature
-20～60℃
Working Humidity
20～80℃
Storage Humidity
10～90℃
Application
Indoor

Information

Warm Tips:
No Leaning!No Impact!

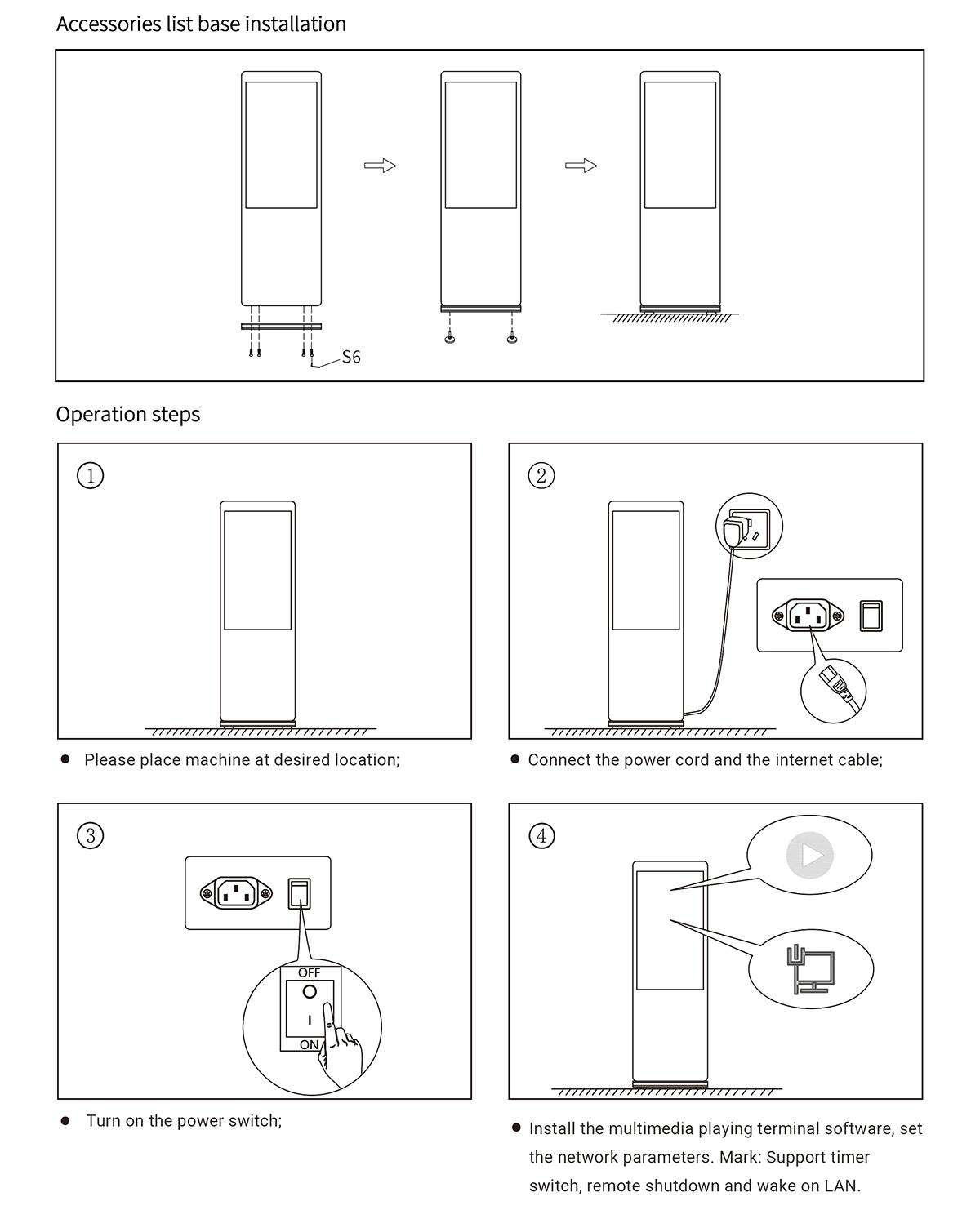

Assembly & Installation

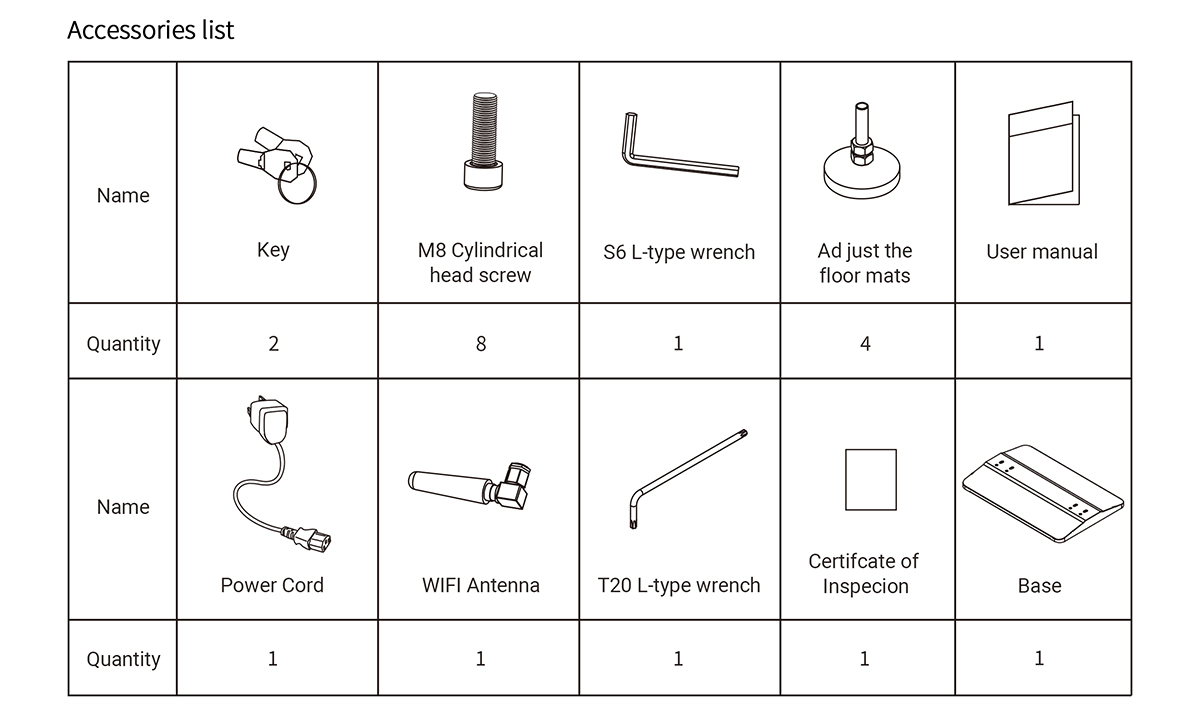

Packing List
