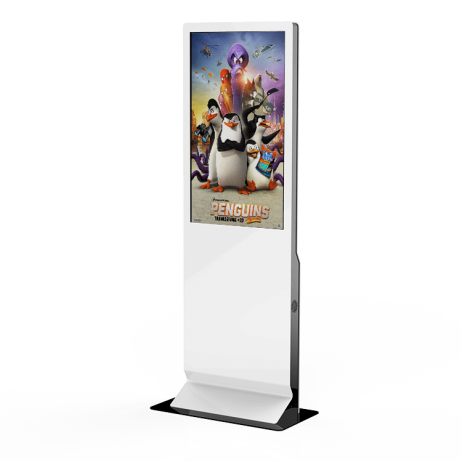

Maken - 43 / 55 Inch Information Kiosk DF-4300T

DF-4300T

43 / 55 Inch Information Kiosk

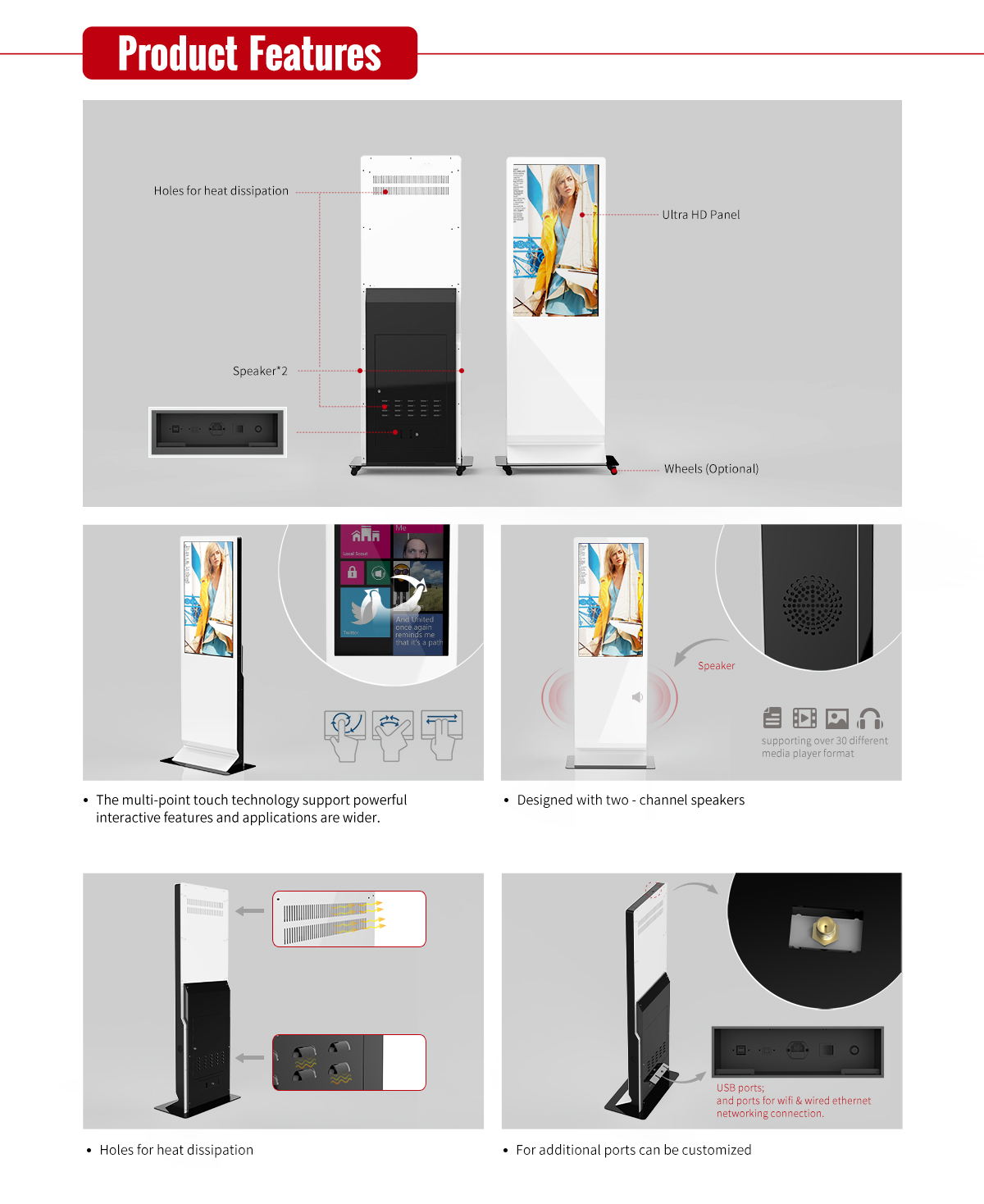

Features

• Large screen display, high-definition image quality to bring an unparalleled visual enjoyment

• Support more than 30 multimedia formats

• Powerful editing features, interactive operation

• Network centralized management, supporting real-time updating

• Support independent software & hardware expansion

• Optional wheels for easy movement

VIDEO

Overview Application Specs Resources

43 or 55 inch information kiosk df4300t

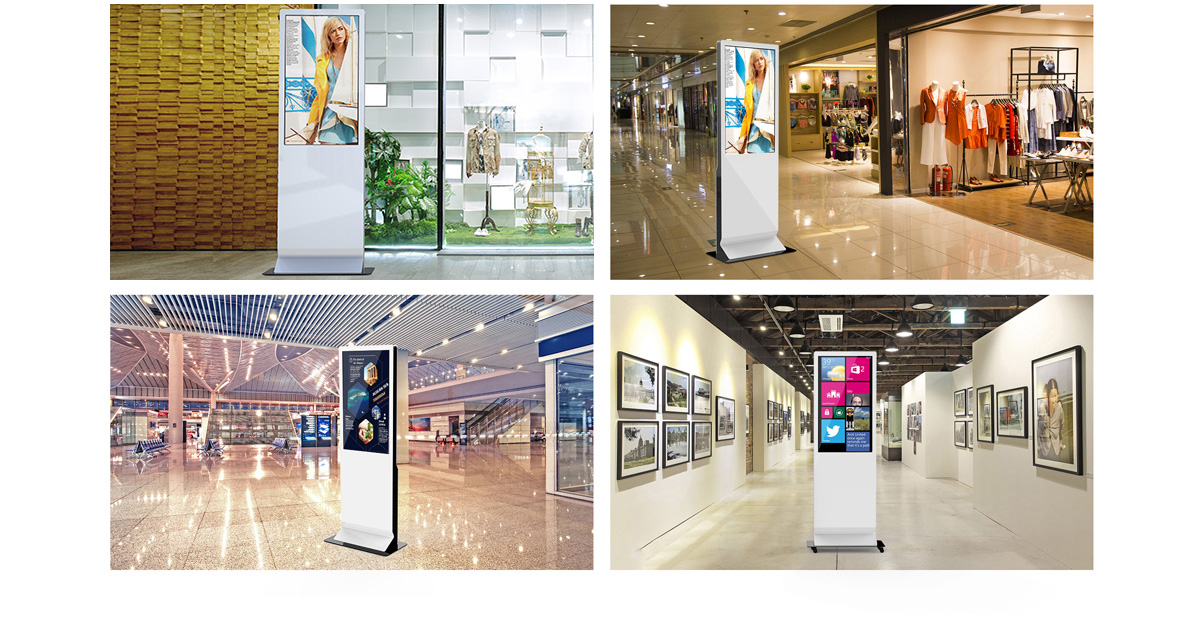

Application

Specs

DF-4300T

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J1900 quad-core 2.0G

System Memory

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Android 7.1 and higher version

CPU

RK3288 Cortex-A17 quad-core 1.8GHz

System Memory

2G/4G

Disk

8G/16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

Projective Capacitive Touch(10 points)

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen size

43inch, 55inch

Response Time

8ms

Max Resolution

1920×1080(43inch), 3840×2160(55inch)

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M(43inch), 1.07B(55inch)

Brightness

400cd/㎡(43inch), 800cd/㎡(55inch)

Refresh Rate

60Hz

Panel Life

30000hours(43inch), 50000hours(55inch)

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜75W(43〞), ＜100W(55〞)

Enclosure

Material

SPCC

Surface

Powder coating

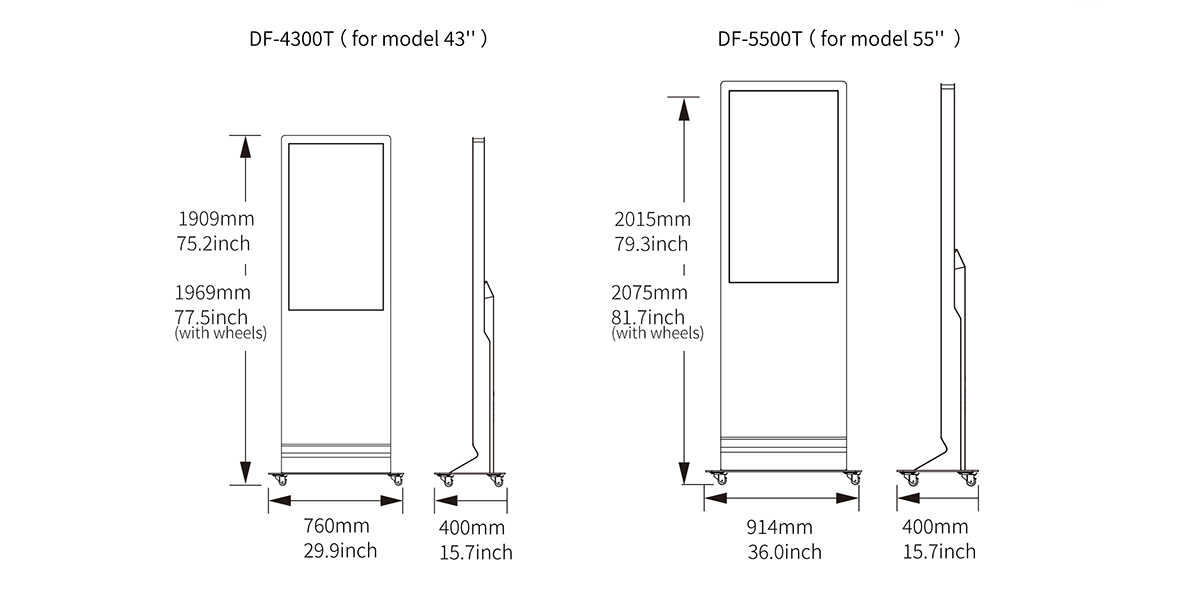

Overall Size

L760×W400×H1909/L760×W400×H1969(43" with wheels)
L914×W400×H2015/L914×W400×H2075(55" with wheels)

Package

L2095×W870×H610(43")
L2190×W1030×H610(55")

Net Weight

73kg(43〞), 99kg(55〞)

Gross Weight

151kg(43〞), 191kg(55〞)

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

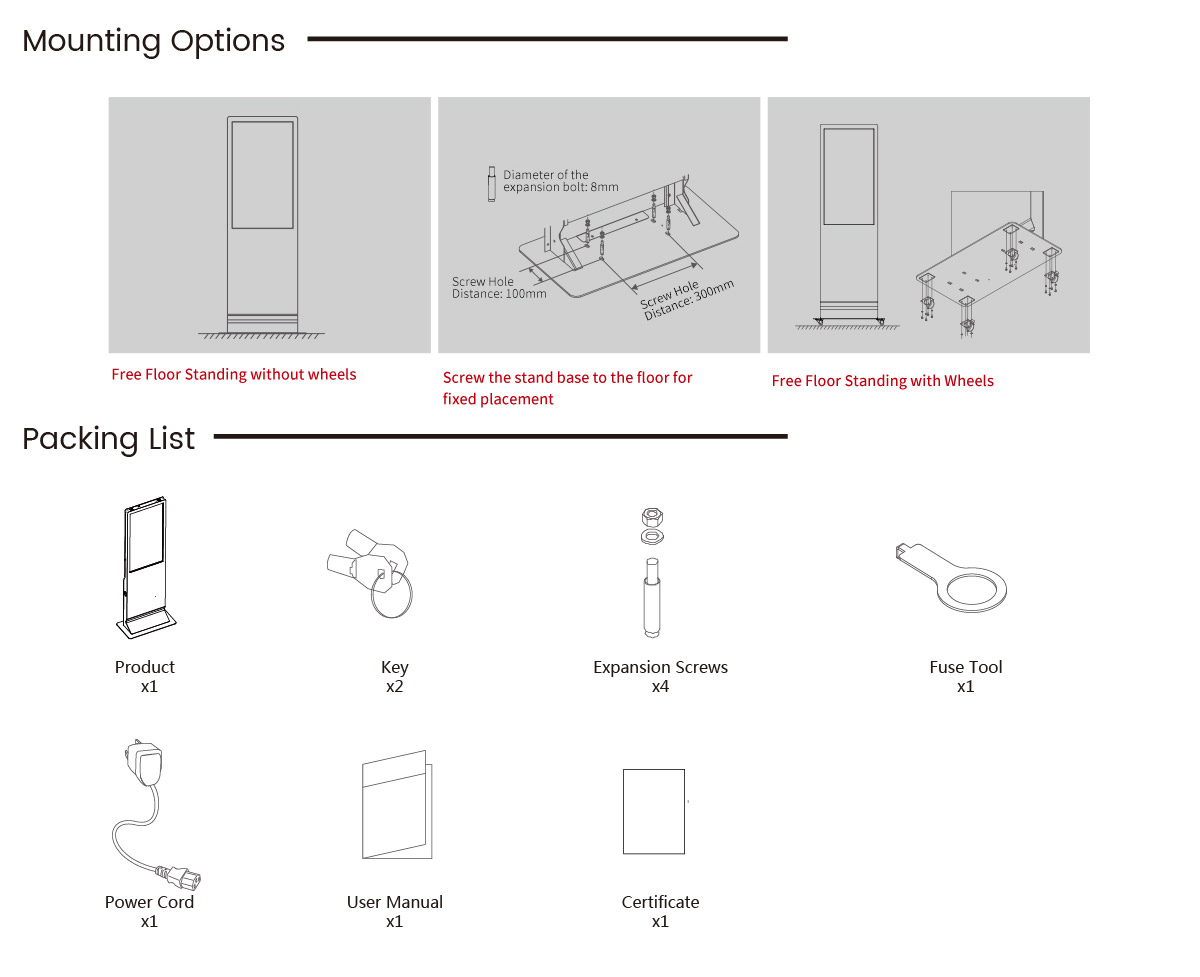

Assembly & Installation

Resources

Brochure（PDF）
