Maken - 43 Inch Combined Digital Signage DC-4300

DC-4300

43 Inch Combined Digital Signage

Features

• 43 inch HD display screen, supporting landscape or portrait

• Display screen and stand combined mounting, two-gear height adjustable

• Equipped four wheels for smooth movement

• Support Ethernet and WIFI

• Option: storage tray

Overview Application Specs Resources

43 inch combined digital signage dc4300

Application

Specs

DC-4300

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Etherner/WIFI

Android 7.1

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

8G/16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

PCAP 10 points

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen Size

43"

Response Time

8ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

350cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜75W

Enclosure

Material

SPCC

Surface

Powder coated

Overall Size

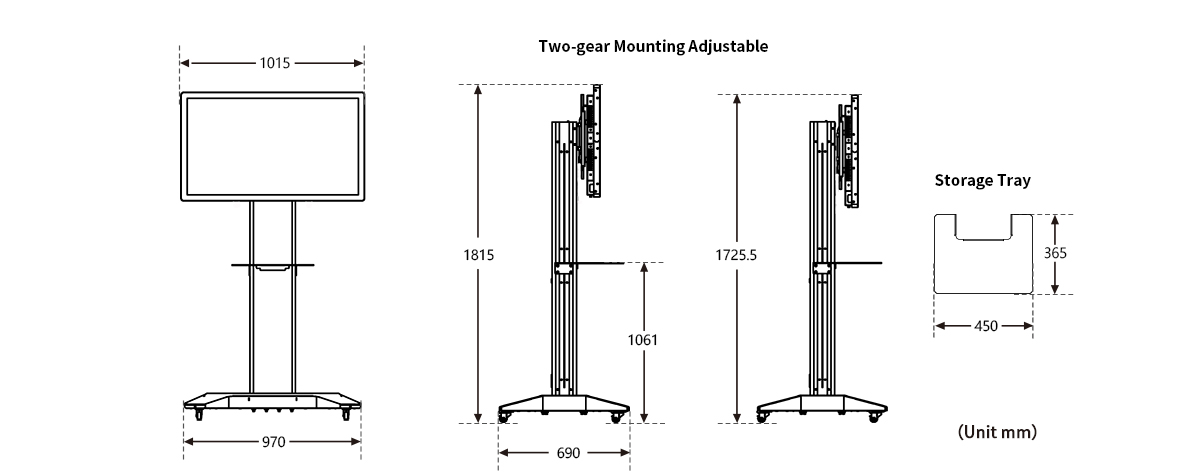

L1015×W690×H1815

Package

1680×565×270(stand)
1135×210×745（43 inch monitor）

Net Weight

72kg

Gross Weight

68kg（stand）/ 27.5kg（43 inch monitor）

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

Resources

Brochure（PDF）
