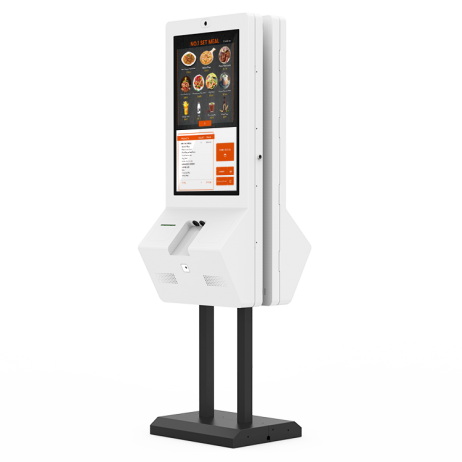

32 inch multifunction self-ordering kiosk kh3210

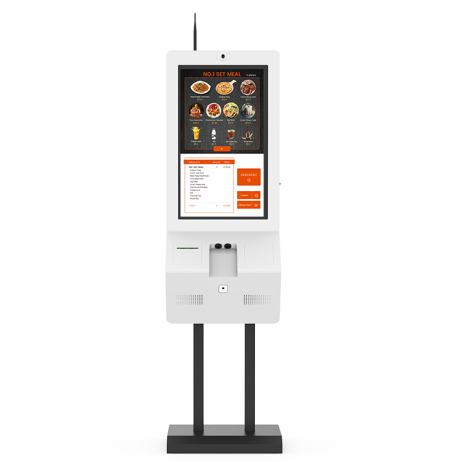

Self-ordering kiosk kh3210-32 inch HD commercial display screen

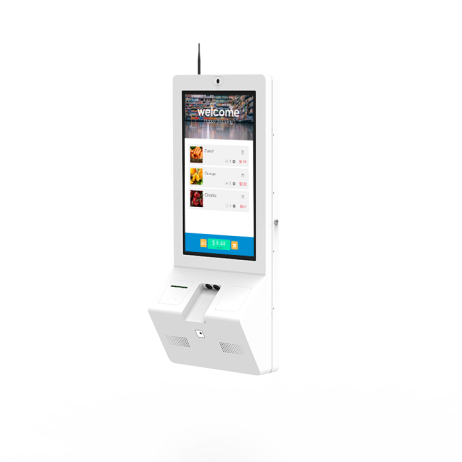

Self-ordering kiosk kh3210-wall mounting

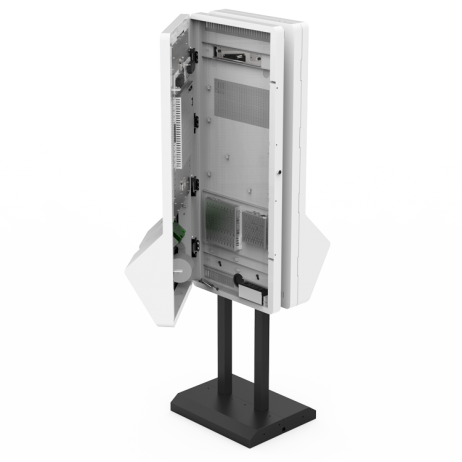

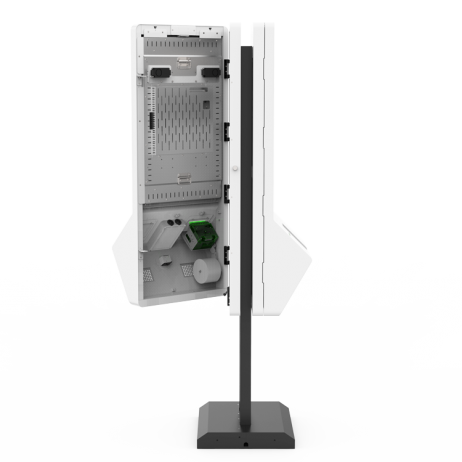

Self-ordering kiosk kh3210-side-opening door
Self-ordering kiosk kh3210-built-in printer,scanner

KH-3210

32 Inch Multifunction Self-Ordering Kiosk

Features

●  32 inch HD commercial display screen

●  10 points PCAP touch

●   Built-in printer,wide-angle scanner, 2D camera

●  Application:  single screen flooring/dual-screen flooring/wall mounting


VIDEO

32 inch multifunction self-ordering kiosk kh3210

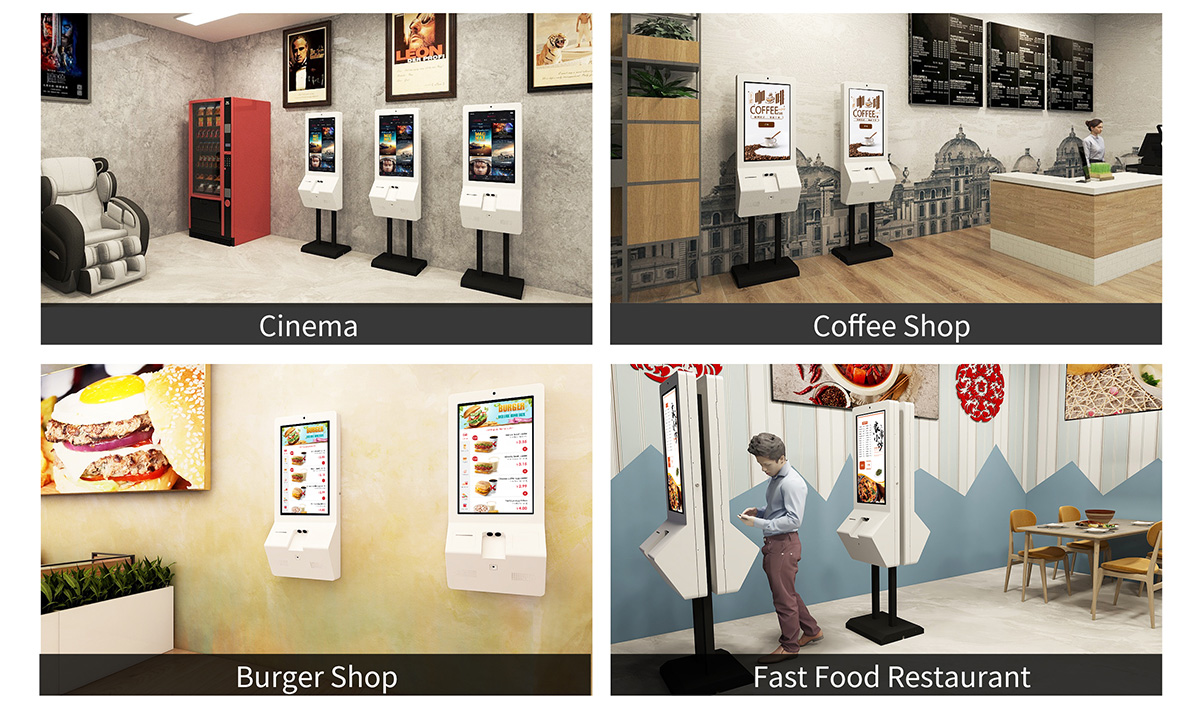

Application

Specs

KH-3210

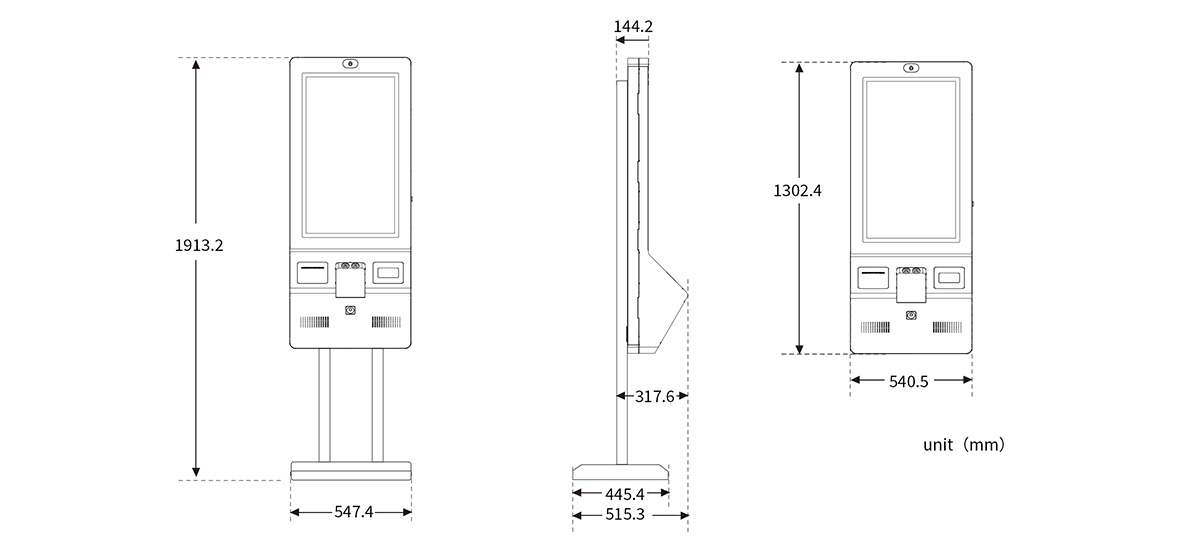

Product size picture

OS Support

WIN 10 (trial version)
CPU
Intel Celeron J6412 quad-core 2.0G
System Memory
4G/8G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*4/RJ45*1
Network
Ethernet/WIFI
Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
2G/4G
Disk
16G/32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Ethernet/WIFI

Screen

Type
Projected capacitive touch (10 points)
Response Time
10ms

LCD

Type
TFT-LCD
Contrast Ratio
1200:1
Screen size
32 inch
Response Time
8ms
Max Resolution
1920×1080
Viewing Angle
H178° V178°
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
400cd/㎡
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC,50/60Hz
Power Consumption
<125W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
W540.5mm×D317mm×H1302.5mm(Wall mounting)
W548mm×D515mm×H1912.5mm(Single screen flooring)
Package
1475mm×475mm×790mm(Wall mounting)
1950mm×535mm×790mm(Single screen flooring)
Net Weight
47.0kg(Wall mounting)
89.0kg(Single screen flooring)
Gross Weight
86.0kg(Wall mounting)
129.0kg(Single screen flooring)

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%
Application
indoor

Devices

Printer
Thermal printer with cutter,paper roll 80mm *80mm
Scanner
2D,Area-imaging scanner
Camera
2 million pixels,prime lens,1920*1080@30fps
Card Reader
Customized
