Maken - 32 Inch Information Kiosk KF-3200

KF-3200

32 Inch Information Kiosk

Features

• 32 inch screen, 10 points PCAP

• Large internal space to hide wires and store tools

• Support Ethernet and WIFI

Overview Application Specs Resources

32 inch information kiosk kf3200

Application

Specs

KF-3200

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Etherner/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

PCAP 10 points

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen size

32"

Response Time

8ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

400cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜60W

Enclosure

Material

SPCC

Surface

Powder coated

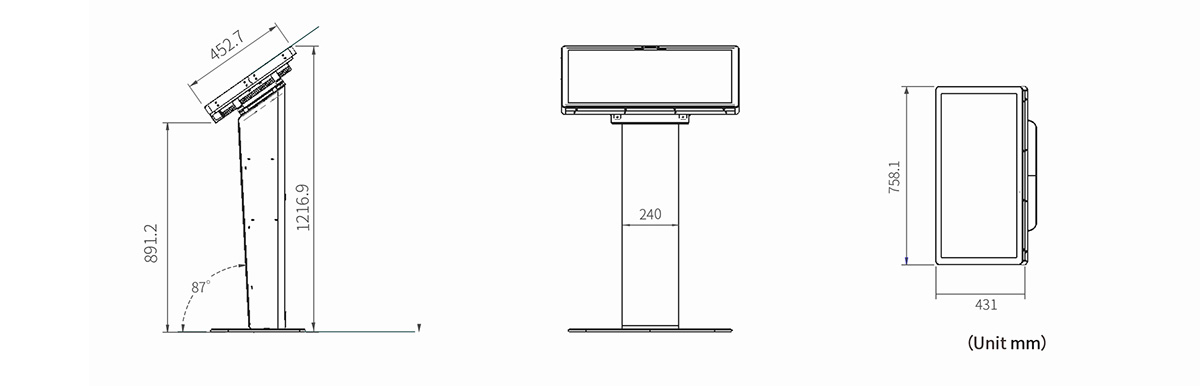

Overall Size

694×402×1053（stand）
758×431×1217（kiosk- 32 inch monitor）

Package

1135×330×410(stand）
800×210×600（32 inch monitor）

Net Weight

35kg（stand）/ 18kg（32 inch monitor）

Gross Weight

37.5kg（ stand）/ 21kg（32 inch monitor）

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

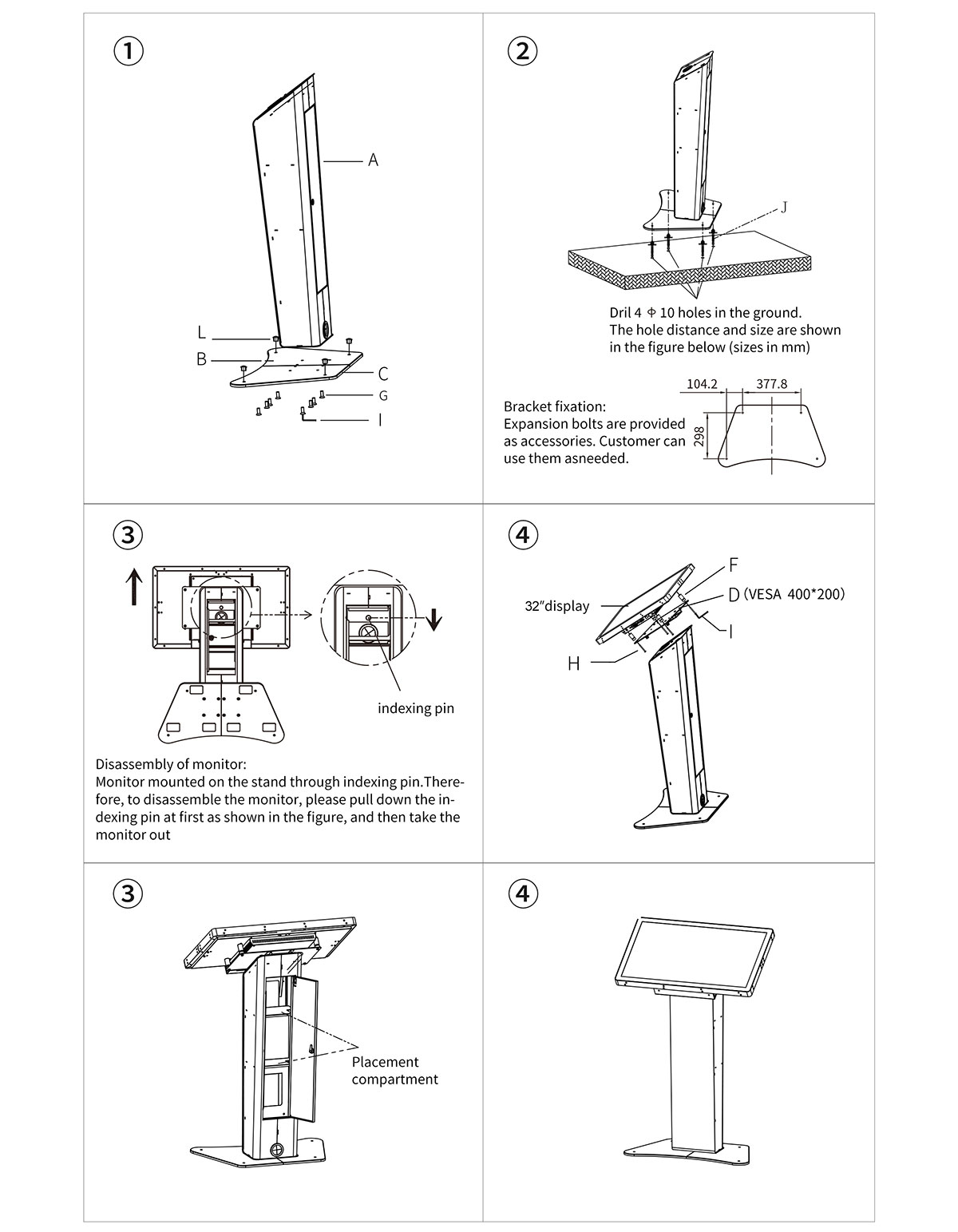

Assembly & Installation

Resources

Brochure（PDF）
