Maken - 27 Inch Information Kiosk KF-2700

KF-2700

27 Inch Information Kiosk

Features

• 27 inch screen, 10 points PCAP

• Support Ethernet and WIFI

• Option: 21.5 inch monitor, camera, scanner, payment holder

Overview Application Specs Resources

27 inch information kiosk kf2700

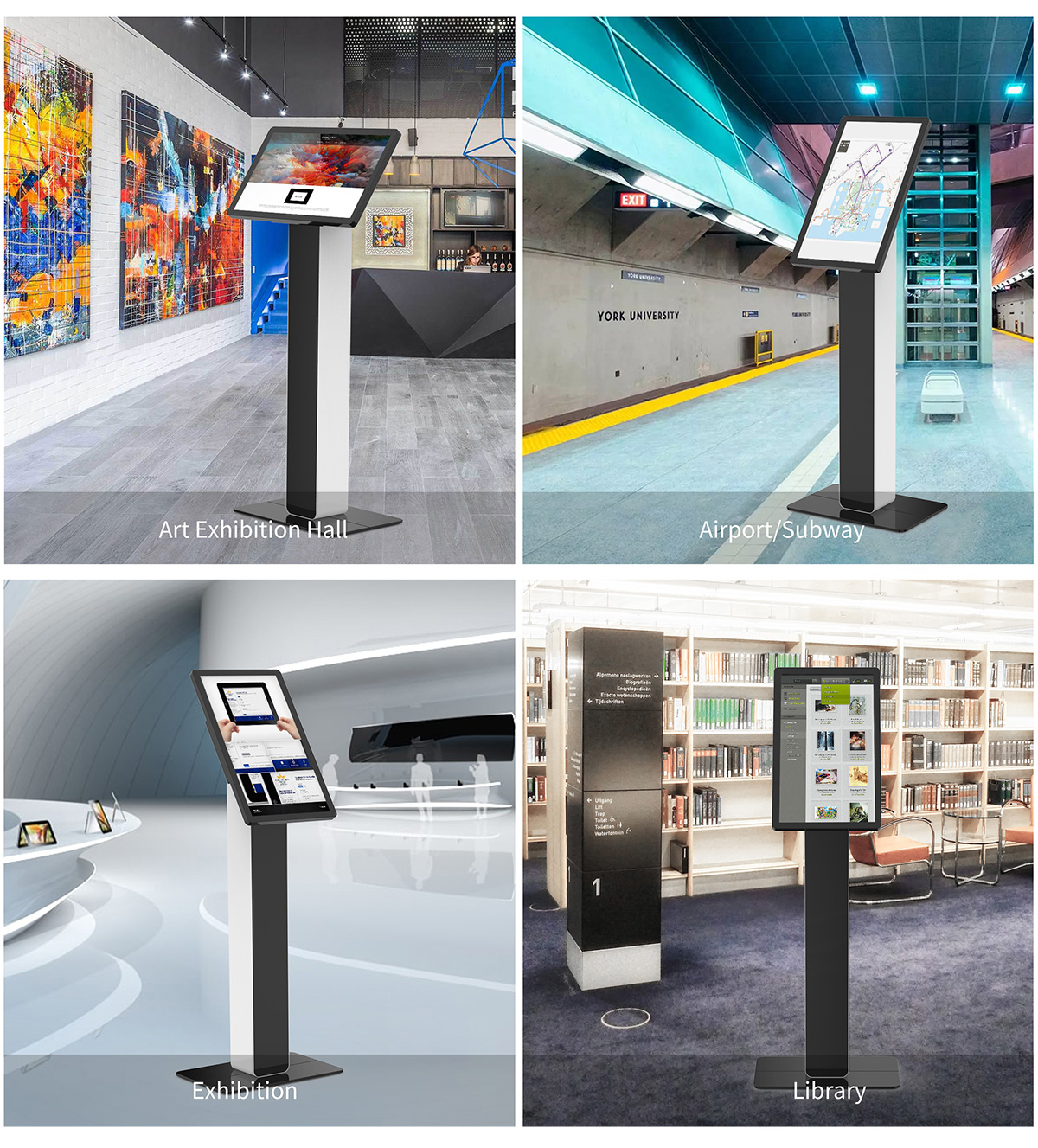

Application

Specs

KF-2700

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Etherner/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

PCAP 10 points

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

3000:1

Screen size

27"

Response Time

12ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

300cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜50W

Enclosure

Material

SPCC

Surface

Powder coated

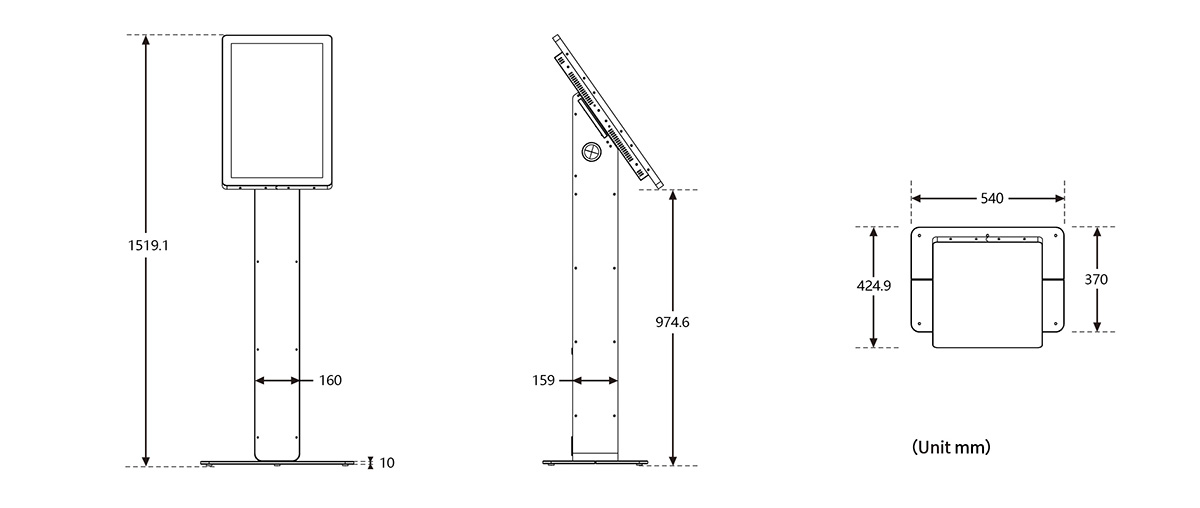

Overall Size

540×370×1315（stand）
540×425×1519（kiosk- 27 inch monitor）

Package

1400×405×340（stand）
770×220×570（27 inch monitor）

Net Weight

26.9kg（stand）/ 35.4kg（kiosk- 27 inch monitor）

Gross Weight

36kg（stand）/ 11.5kg（27 inch monitor）

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

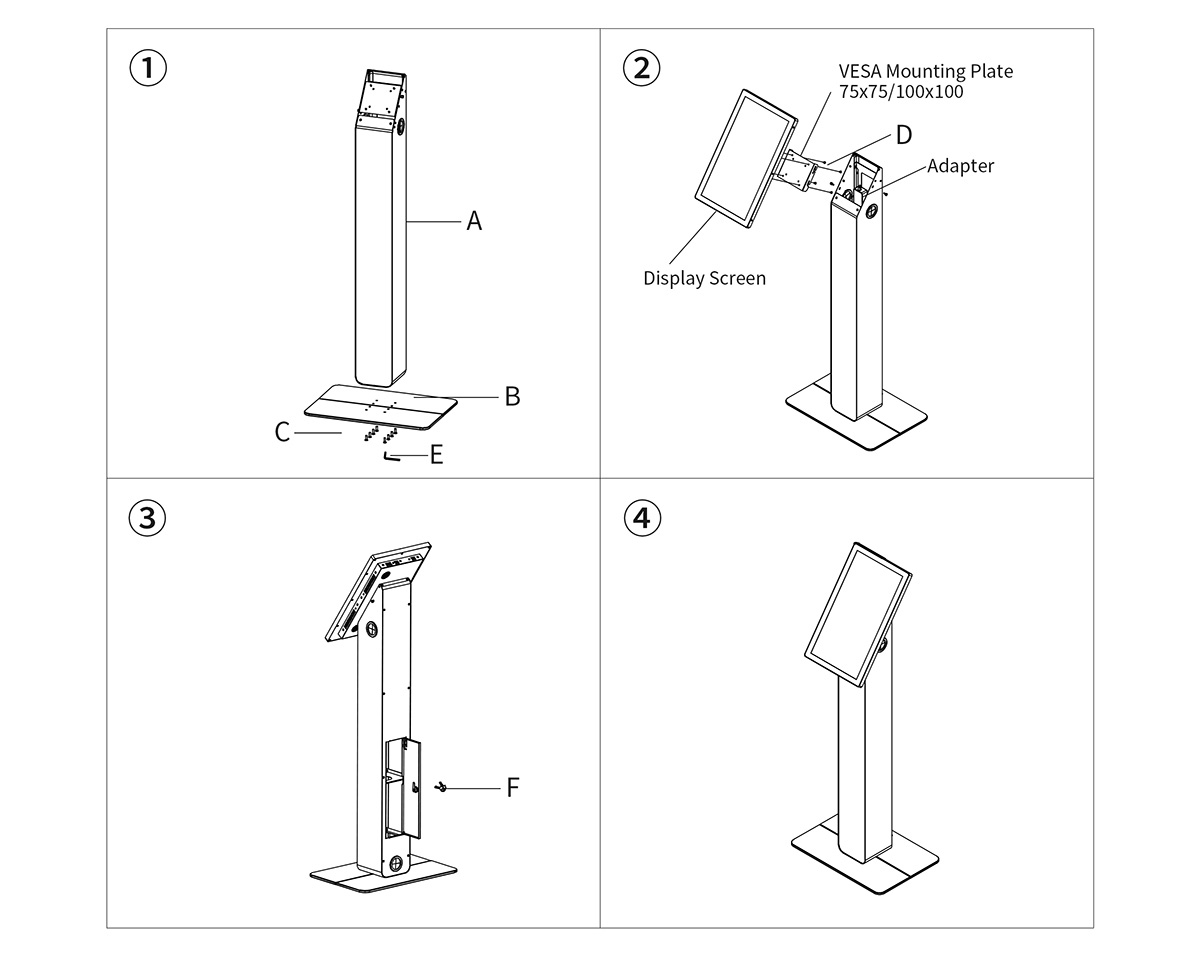

Assembly & Installation

Resources

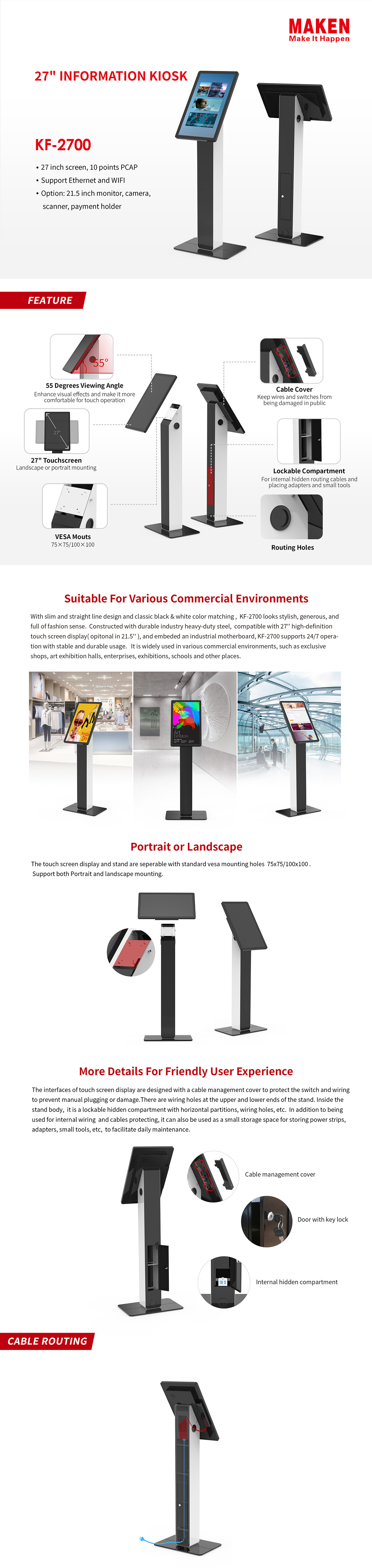

Brochure（PDF）
