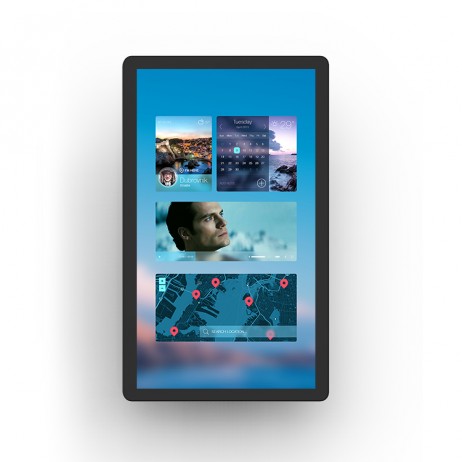

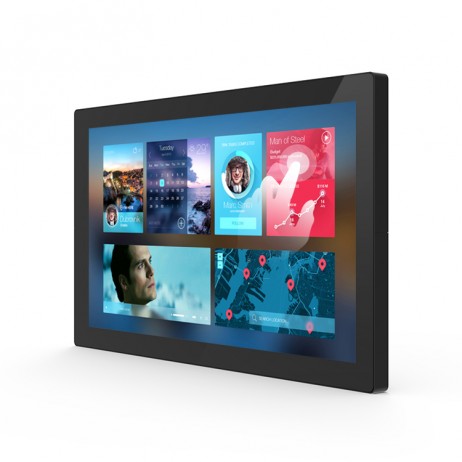

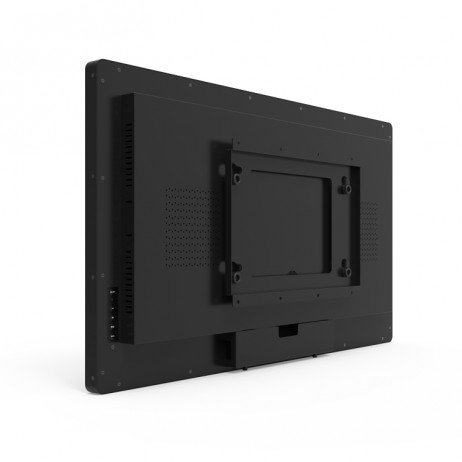

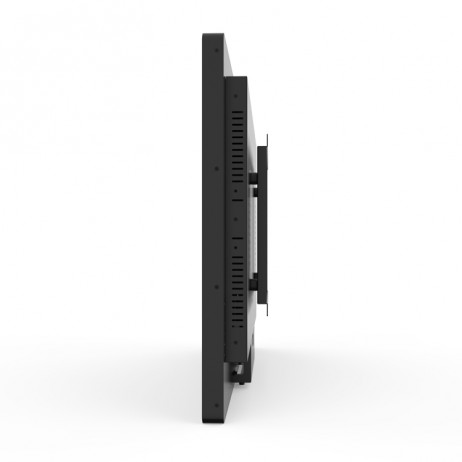

Maken - 21.5 Inch -55 Inch Touchscreen Signage Touchscreen Signage

Touchscreen Signage

21.5 Inch -55 Inch Touchscreen Signage

Features

• Screen size: 21.5 / 23.8 / 27 / 32 / 43 / 55 inch

• high brightness IPS commercial screen

• 10-point capacitive touch and lighting response offers precise and smooth experience

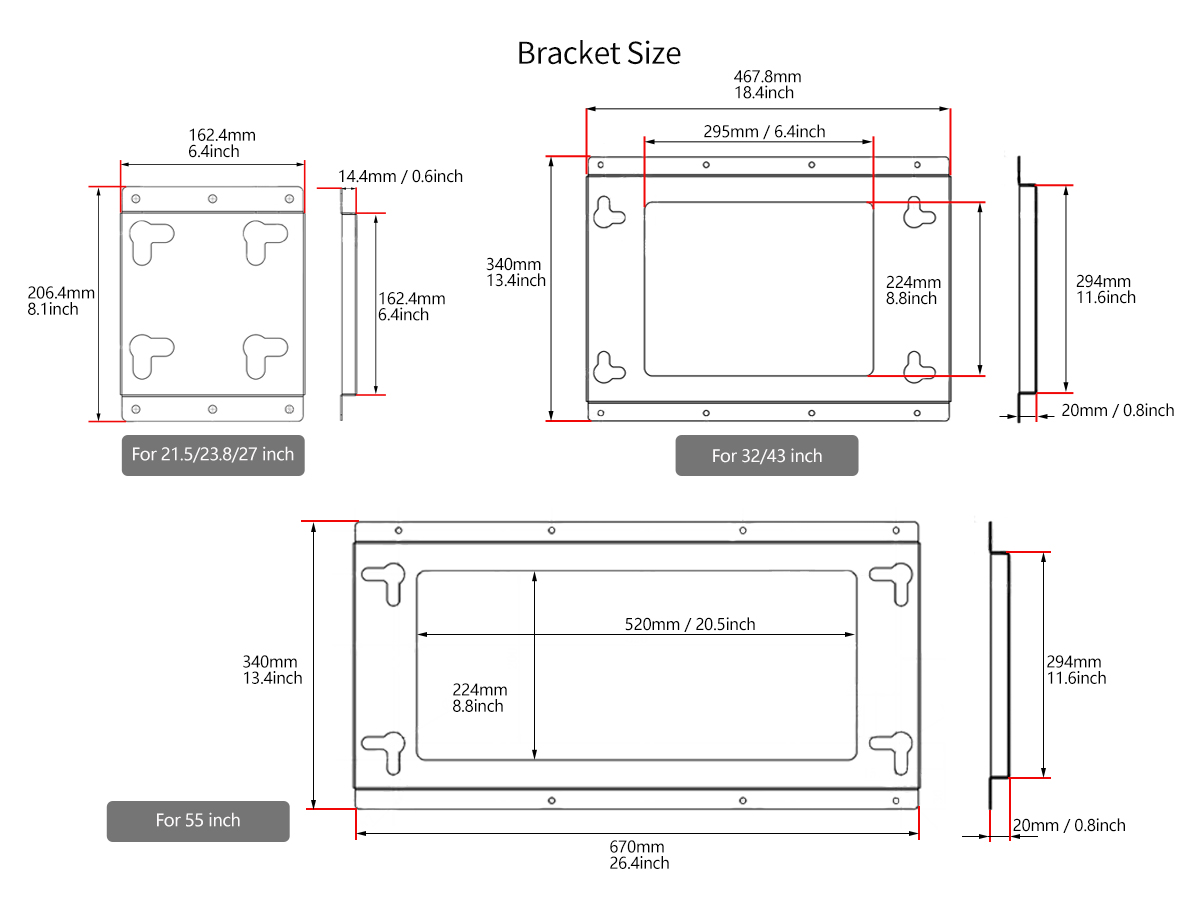

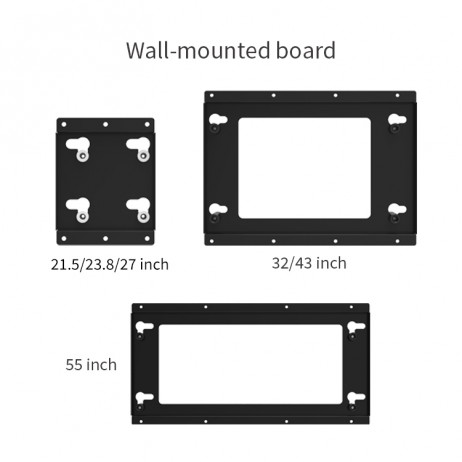

• Support VESA, wall mounts or floor stand mounts with MAKEN’s Monitor Stands series

• Size, accessories and modules can be customized

Overview Application Specs Resources

21.5 inch -55 inch touchscreen signage touchscreen signage

Application

Specs

Touchscreen Signage

Screen

Type

PCAP 10 points

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

3000:1（21.5"/27"）
1000:1（23.8"）
1200:1（32/43/55"）

Screen size

21.5"-55"

Response Time

18ms（21.5"）
14ms（23.8"）
12ms（27"）
8ms（32"/43"/55"）

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

300cd/㎡（21.5"/27"）
250cd/㎡（23.8"）
400cd/㎡（32"）
350cd/㎡（43/55"）

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC，50/60Hz

Power Consumption

<30W(21.5"/23.8")， <45W(27" ), <50W(32" ), <60W(43" ), <80W(55" )

Enclosure

Material

SPCC

Surface

Powder coating

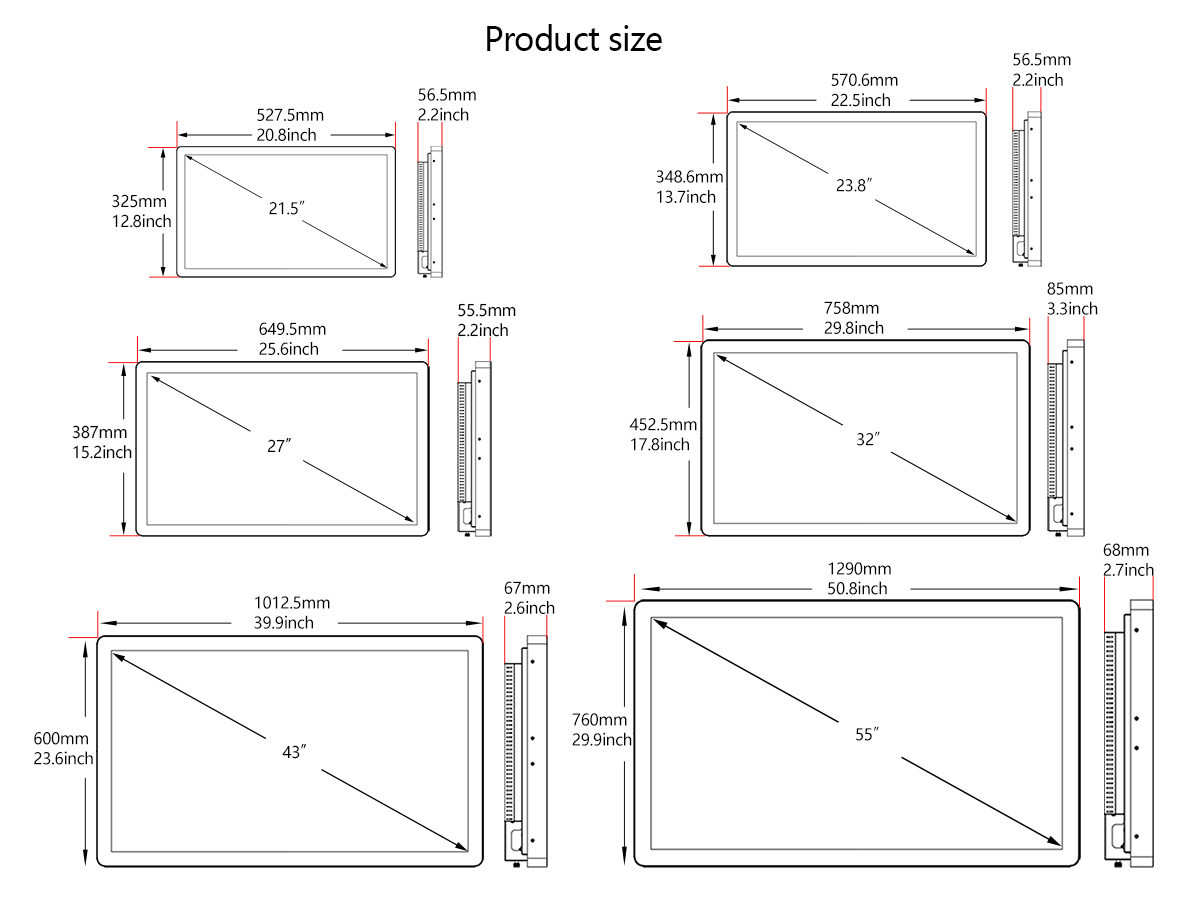

Overall Size

527.5×56.5×325 mm(21.5")
570.6×56.5×348.6mm(23.8")
649.5×55.5×387.5 mm(27" )
758×452.5×85 mm(32")
1012.5×67×600mm (43")
1290×68×760mm (55")

Package

650×190×450mm (21.5")
807×190×448.5mm(23.8")
770×190×530mm(27")
880×210×600mm (32")
1135×210×745mm (43")
1445×235×930 mm(55")

Net Weight

7.5kg(21.5")
8.1kg (23.8")
8.5kg (27")
20.5kg (32")
23.0kg(43" )
40.0kg (55")

Gross Weight

10.5kg(21.5")
10.5kg (23.8" )
11.5kg (27")
24.5kg (32")
27.5kg(43")
50.0kg (55")

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

Assembly & Installation

Resources

Brochure（PDF）
