Maken - 19 Inch Self-Ordering Kiosk KH-1900

KH-1900

19 Inch Self-Ordering Kiosk

Features

• Simple and fashion design
• Multi-touch capacitive screen
• Flexible choices of windows and android system
• Quality leadership with high hardware configuration of industrial grade

Overview Application Specs Resources

19 inch self-ordering kiosk kh1900

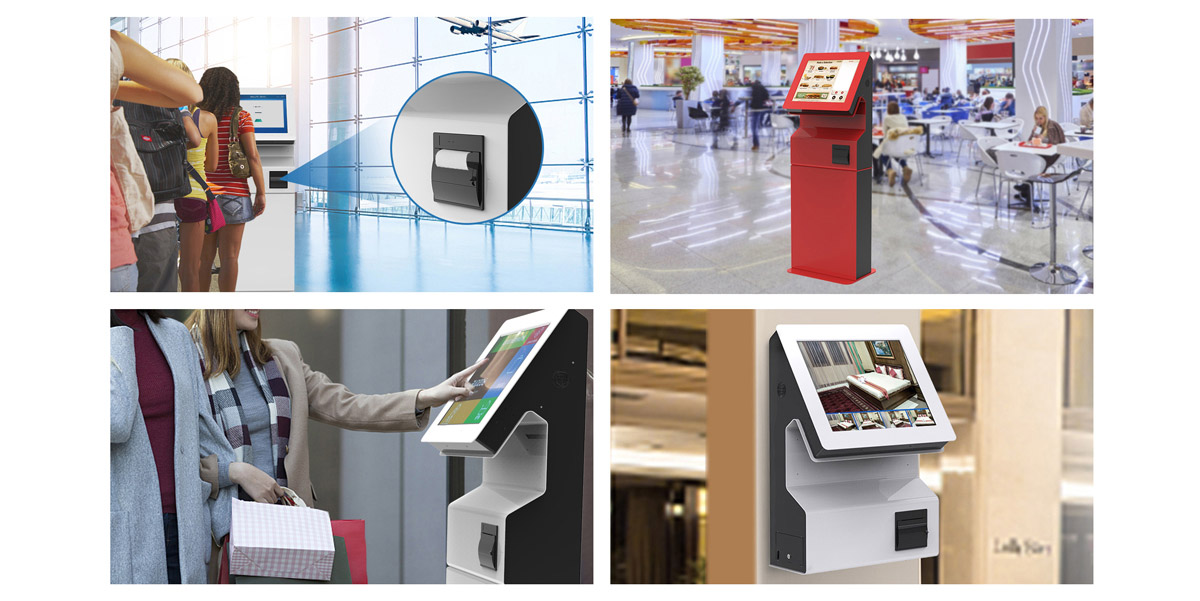

Application

Specs

KH-1900

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

Capacitive Touch (10 points)

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1000:1

Screen Size

19〞

Response Time

5ms

Max Resolution

1280×1024

Viewing Angle

H178° V178°

Aspect Ratio

5:4

Display Colors

16.7M

Brightness

250cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜85W

Enclosure

Material

SPCC

Surface

Powder coated

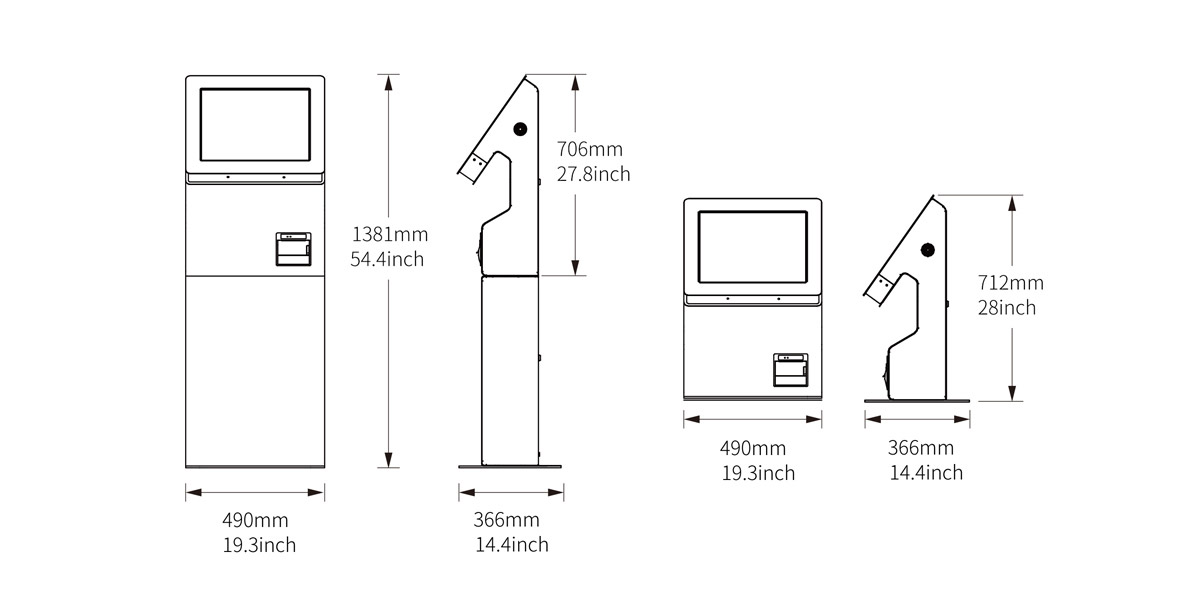

Overall Size

Floor stand: L490×W366×H1381
Wall mount: L490×W397×H706
Desktop: L490×W366×H712

Package

Floor stand: L1490×W600×H475 (carton )
Floor stand: L1510×W615×H580 (Wooden case )
Wall mount: L830×W620×H425 (carton )
Desktop: L830×W620×H425 (carton )

Net Weight

Floor stand: 47kg
Wall mount: 26kg
Desktop: 31kg

Gross Weight

Floor stand: 64kg(carton )/91kg (Wooden case )
Wall mount: 32kg (carton )
Desktop: 37kg(carton )

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

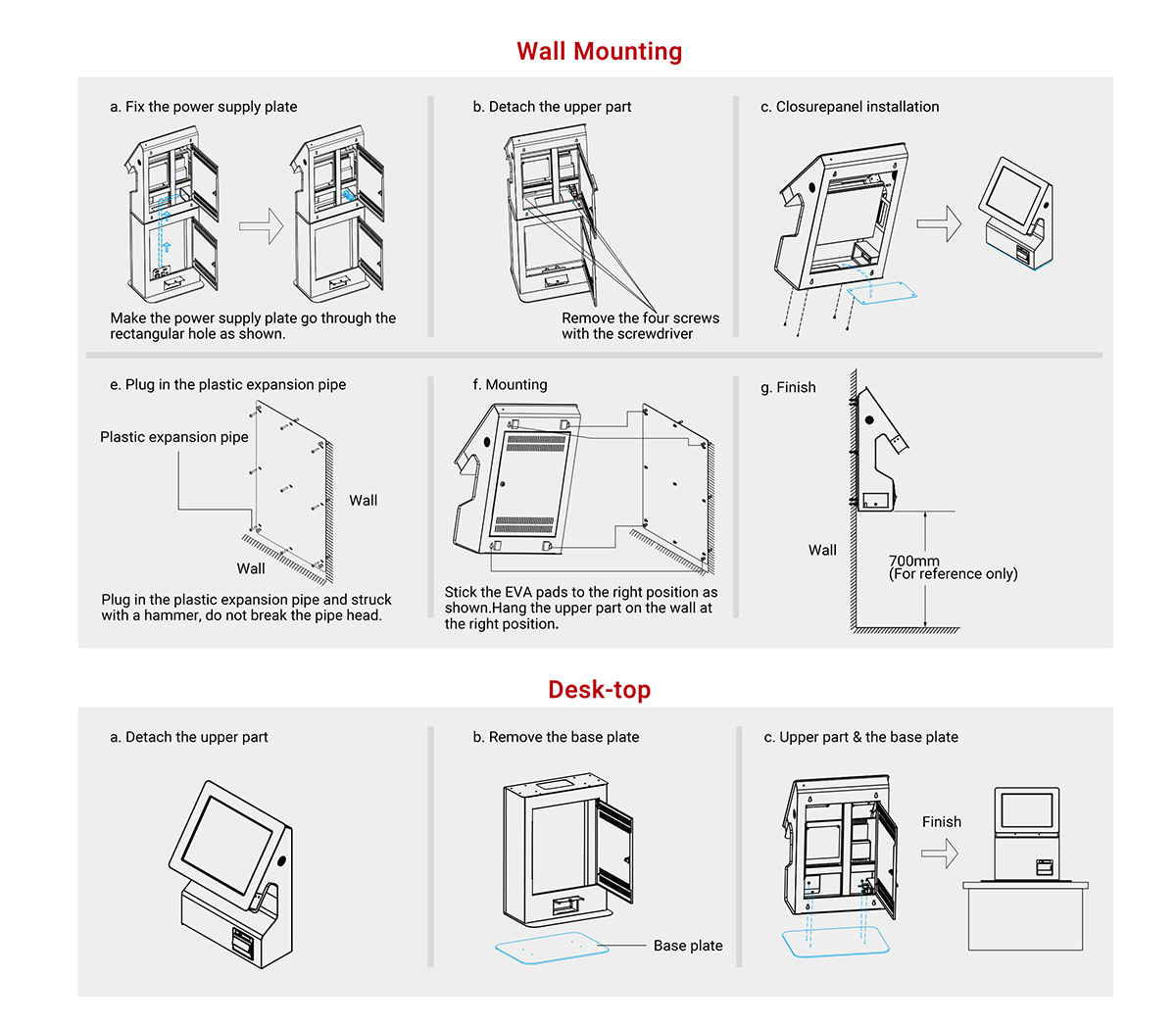

Assembly & Installation

Resources

Brochure（PDF）
